Date：2017-11-1 Hits：4048
Honeywell S3000MKII&MKIII固定式有毒气氧气探测器 二线制
S3000MKII&MKIII固定式有毒气氧气探测器
S3000MKII&MKIII探测器可对室内和室外潜在爆炸性环境中的毒气和氧气危险进行全面监控。新推出的MKIII为全本安设计，可在0区使用，这种小功率气体探测器采用工业标准型2线4-20mA设计，是新建和改进应用的理想产品。用户可使用液晶显示屏和磁开关配置探测器而无需获得“安全作业（热电）许可”。故障诊断软件和可编程的定期标定提醒简化了维护程序。。
可探测气体类型
O2/H2S/CO/SO2/NH3/CL2/CLO2/NO/NO2/H2/HCL/HF/PH3...

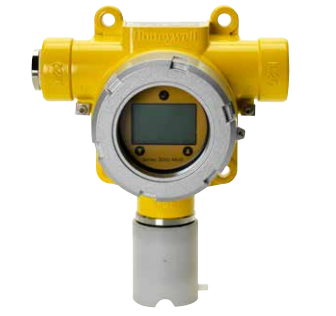

Series 3000 MkII (flameproof) and Mk III (intrinsically safe)
The Series 3000 range of transmitters provide comprehensive monitoring of toxic and Oxygen gas hazards in potentially explosive atmospheres.
Suitable for mounting both indoors and out, they are available in two versions and offer excellent versatility. The MkII is contained in a flameproof housing, has an intrinsically safe sensor connection and is for use in predominantly Zone 1 applications. However with the use of the optional remote mounting kit the sensor of the MkII can be mounted in a Zone 0 environment. The MkIII is for use with a separate suitable IS barrier (to be ordered separately) allowing the complete transmitter to be used in Zone 0 applications.
These low powered gas detectors all feature a loop powered 4-20 mA connection, making them ideal for both new and retrofit installations.
Users can configure the detector through the use of the easy to read LCD and intuitive interface while fault diagnostic software and a programmable calibration period greatly simplify maintenance procedures.
The intrinsically safe smart sensors are supplied pre-configured and can be ‘hot swapped’ without having to remove power to the detector, saving time and money during commissioning and routine servicing. A remote sensor mounting kit is available that allows the sensor to be mounted up to 50’ (15m) from the transmitter, making it ideal for operation in areas that are difficult to access.
Series 3000 MkII and Mark III are supplied with all necessary accessories for easy installation. The detector has 4 mounting lugs for surface mounting or and optional pipe mounting kit. Electrical installation can be made using either conduit or cable with suitable mechanical protection. Available in painted Aluminium LM25 or Stainless Steel 316 with two ¾” NPT entries or two M20 entries with a suitable blanking plug (certification type dependent) included as standard. A weatherproof cap is also included for use in the harshest outdoor conditions.
1 TRANSMITTER
Series 3000 MkII transmitter (flameproof) is supplied complete with integral surface mounting lugs, 2 x 3/4"NPT or 2 x M20 conduit/cable entries (certification dependent), 1 x suitable blanking plug, 1 x hex wrench set, weatherproof cap, operating magnet, calibration & test certificate and instruction manual. Gas specific Sensor and accessories to be ordered separately.
|
ATEX/IECEx Approved |
|
|
S3KAL2 |
ATEX/IECEx approved Series 3000 MkII toxic and oxygen transmitter, Aluminium LM25 and 2 x M20 entries |
|
S3KAS2 |
ATEX/IECEx approved Series 3000 MkII toxic and oxygen transmitter, Stainless Steel 316 and 2 x M20 entries |
|
UL/c-UL Approved |
|
|
S3KUL2 |
UL/cUL approved Series 3000 MkII toxic and oxygen transmitter, Aluminium LM25 and 2 x 3/4”NPT entries |
|
S3KUS2 |
UL/cUL approved Series 3000 MkII toxic and oxygen transmitter, Stainless Steel 316 and 2 x 3/4”NPT entries |
Series 3000 MkIII transmitter (Intrinsically Safe) is supplied complete with integral surface mounting lugs, 2 x 3/4"NPT or 2 x M20 conduit/cable entries (certification dependent), 1 x suitable blanking plug, 1 x hex wrench set, weatherproof cap, operating magnet, calibration & test certificate and instruction manual. Gas specific Sensor and accessories to be ordered separately.
|
ATEX/IECEx Approved |
|
|
S3KAL3 |
ATEX/IECEx approved Series 3000 MkIII toxic and oxygen transmitter, Aluminium LM25 and 2 x M20 entries |
|
S3KAS3 |
ATEX/IECEx approved Series 3000 MkIII toxic and oxygen transmitter, Stainless Steel 316 and 2 x M20 entries |
|
UL/c-UL Approved |
|
|
S3KUL3 |
UL/cUL approved Series 3000 MkIII toxic and oxygen transmitter, Aluminium LM25 and 2 x 3/4”NPT entries |
|
S3KUS3 |
UL/cUL approved Series 3000 MkIII toxic and oxygen transmitter, Stainless Steel 316 and 2 x 3/4”NPT entries |
2. SENSOR
|
Serviceable Sensor (316 Stainless Steel). |
|
|
S3KXSO1SS |
Oxygen 0-25%VOL |
|
S3KXSC1SS |
Carbon Monoxide 0-300ppm default range (configurable 0-100ppm up to 0-500ppm in 100ppm increments) |
|
S3KXSC2SS |
Carbon Monoxide 0-300ppm default range (configurable 0-100ppm up to 0-999ppm in 100ppm increments) |
|
S3KXSH1SS |
Hydrogen Sulfide 0-15ppm default range (configurable 0-10ppm up to 0-50ppm in 1ppm increments) |
|
S3KXSH2SS |
Hydrogen Sulfide 0-100ppm default range (configurable 0-50ppm up to 0-500ppm in 10ppm increments) |
|
S3KXSL1SS |
Chlorine 0-5.0ppm default range (configurable 0-5.0ppm up to 0-20.0ppm in 5.0ppm increments) |
|
S3KXSS1SS |
Sulfur Dioxide 0-15.0ppm default range (configurable 0-5.0ppm up to 0-20.0ppm in 5.0ppm increments) |
|
S3KXSX1SS |
Chlorine Dioxide 0-1.00ppm |
|
S3KXSM1SS |
Nitrogen Monoxide 0-100ppm |
|
S3KXSN1SS |
Nitrogen Dioxide 0-10.0ppm default range (configurable 5.0ppm up to 0-50.0ppm in 5.0ppm increments) |
|
S3KXSG1SS |
Hydrogen 0-1000ppm |
|
S3KXSG2SS |
Hydrogen 0-10,000ppm |
|
S3KXSR1SS |
Hydrogen Chloride 0-10ppm (10.0 to 20.0ppm, 1.0ppm) |
|
S3KXSA1SS |
Ammonia 0-200ppm default range (configurable 0-50ppm up to 0-200ppm in 50ppm increments) |
|
S3KXSA2SS |
Ammonia 0-1000ppm default range (configurable 0-200ppm up to 0-1000ppm in 50ppm increments) |
|
S3KXSF1SS |
Hydrogen Fluoride 0-12.0ppm |
|
S3KXSP1SS |
Phosphine 0-1.2ppm |
|
S3KXSY1SS |
Hydrogen Cyanide 0-30.0ppm |
|
S3KXSU1SS |
Fluorine 4ppm |
|
S3KXSE1SS |
Ethylene Oxide (ETO), 25.0ppm (20.0 to 50.0ppm) |
3. ACCESSORIES, CONSUMABLES & SPARES
|
Accessories |
|
|
S3KCAL |
Calibration cup (flow adaptor) |
|
S3KCC |
Collecting cone (for CO & H2 only) |
|
S3KDMK |
Duct mounting kit (for CO, H2 & H2S only) |
|
S3KRMK |
Remote sensor mounting kit |
|
SPXCDMTBR |
Mounting bracket (inc. bolts, nuts, brackets) |
|
SPXCDSDP |
Sunshade / Deluge Protection |
|
SGPTPRMTL1 |
Single channel zener barrier MTL7728+ |
|
SGPTPRMTL2 |
2 channel zener barrier MTL7787+ |
|
SGPTPRMTL3 |
Galvanic Isolator MTL 5042 |
|
SGPTPRPFG1 |
Galvanic Isolator P&F KFD2-STC4-EX1 |
|
Consumables: Spare Cells for use with Serviceable Sensor. |
|
|
S3KO1SS |
Oxygen 0-25%VOL |
|
S3KC1SS |
Carbon Monoxide 0-300ppm default range (configurable 0-100ppm up to 0-1000ppm in 100ppm increments) |
|
S3KH1SS |
Hydrogen Sulfide 0-15ppm default range (configurable 0-10ppm up to 0-50ppm in 1ppm increments) |
|
S3KH2SS |
Hydrogen Sulfide 0-100ppm default range (configurable 0-50ppm up to 0-500ppm in 10ppm increments) |
|
S3KL1SS |
Chlorine 0-5.0ppm default range (configurable 0-5.0ppm up to 0-20.0ppm in 5.0ppm increments) |
|
S3KS1SS |
Sulfur Dioxide 0-15.0ppm default range (configurable 0-5.0ppm up to 0-20.0ppm in 5.0ppm increments) |
|
S3KX1SS |
Chlorine Dioxide 0-1.00ppm |
|
S3KM1SS |
Nitrogen Monoxide 0-100ppm |
|
S3KN1SS |
Nitrogen Dioxide 0-10.0ppm default range (configurable 5.0ppm up to 0-50.0ppm in 5.0ppm increments) |
|
S3KG1SS |
Hydrogen 0-1000ppm |
|
S3KG2SS |
Hydrogen 0-10,000ppm |
|
S3KR1SS |
Hydrogen Chloride 0-10ppm (10.0 to 20.0ppm, 1.0ppm) |
|
S3KA1SS |
Ammonia 0-200ppm default range (configurable 0-50ppm up to 0-200ppm in 50ppm increments) |
|
S3KA2SS |
Ammonia 0-1000ppm default range (configurable 0-200ppm up to 0-1000ppm in 50ppm increments) |
|
S3KF1SS |
Hydrogen Fluoride 0-12.0ppm |
|
S3KP1SS |
Phosphine 0-1.2ppm |
|
S3KY1SS |
Hydrogen Cyanide 0-30.0ppm |
|
S3KU1SS |
Fluorine 4ppm |
|
S3KE1SS |
Ethylene Oxide (ETO), 25.0ppm (20.0 to 50.0ppm) |
|
Spares (Miscellaneous) |
|
|
S3KDM |
Replacement display module |
|
S3KTM |
Replacement terminal module |
|
S3KDM3 |
Mk III Replacement display module |
|
S3KTM3 |
Mk III Replacement terminal module |
|
S3KTMTS |
Terminal screw and 'U' clamp (bag of 20) |
|
S3KWP |
Weatherproof housing with bump test port for use with Series 3000 and XNX EC toxic sensors |
|
SPXCDMAG |
Magnet |
|
SPXCDHWES |
Hex wrench for earth screw |
|
SPXCDEBS |
Earth bracket and screws |
|
S3KM20P |
M20 Blanking Plug |
|
S3KNPTP |
3/4"NPT Blanking Plug |
