XNX 固定式通用型气体探测器

XNX通用型变送器标志着霍尼韦尔探测器在气体探测方面新的转变。它作为公共平台支持种类繁多的传感器或探测器，并标配HART载波4-20mA输出，为输入输出提供更多的模块化选择。
XNX的设计保证了灵活的集成、简单的安装、用户友好型操作以及简易的维护。它是用于各种气体检测控制器或工业标准PLC的理想选择。如果使用霍尼韦尔探测器气体监控解决方案，无论在何种情况下，用户都可得到保护。
可探测气体类型
Combustiable Gas/O2/H2S/CO/SO2/NH3/CL2/CLO2/NO/NO2/H2/HCL/HF/PH3/CO2...

Product Overview
XNX's advantage comes from a simple-to-use, low-maintenance universal platform that works with other safety equipment on a digital bus system, including Honeywell Analytics’ own Searchline Excel, Optima or other gas detectors, industry standard PLCs and third-party gas monitoring controllers.

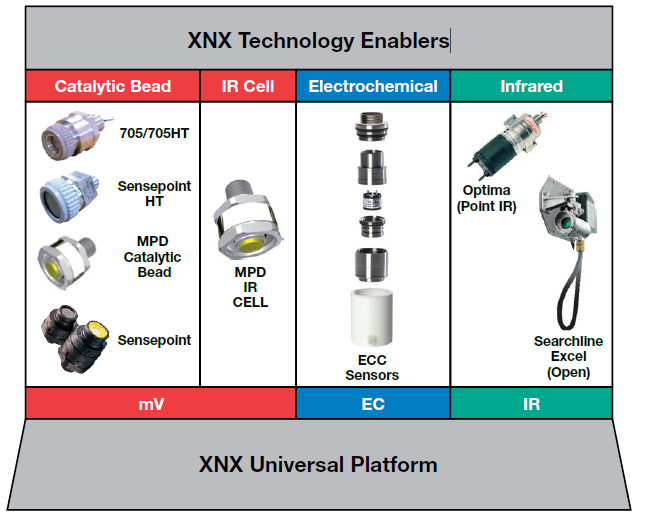

XNX supports Electrochemical, Infrared and Catalytic Bead gas monitors and uses standard 4-20mA wiring and HART; options include Modbus, Fieldbus (pending) up to three relays and a local Hart Adapter for configuration and diagnostics using existing HART handheld devices.

With 200+ unique configurations, XNX satisfies Class 1/Class 2 intrinsically safe, explosion-proof requirements in upstream/downstream oil, chemical, wastewater and other industries.

The enclosure is available in stainless steel or aluminum, with a marine-grade coating. Five threaded ports, available in metric or NPT versions, and ruggedized mounting options provide ultimate installation flexibility.  Instrumentation built on various sensing technologies can be attached locally to the transmitter or remotely with the appropriate accessories.

XNX™ Universal Transmitter

Supports the widest range of sensors on a common platform and offers a modular choice of inputs and outputs (saving customers time and money).
Features & Benefits
Flammable gas detection 0 to 100% LFL/LEL
Flexible operation options
Minimal training required
Quick Specs
Material: LM25 aluminum, painted (SS316 painted optional)
Temperature: -40° to +65°C / -40° to +150°F (sensor dependent)
Humidity: 20 to 90% RH (non-condensing)

Ordering Information

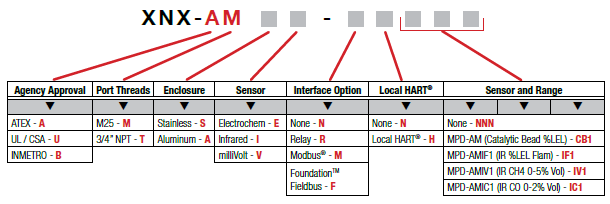

The XNX part numbering system contains all necessary information to convey the product configuration including options. Agency, Port
Thread, Enclosure Material, Sensor Personality define the standard unit. Three option fields are used to define optional Relay or Fieldbus
interfaces and factory installed local HART®.
