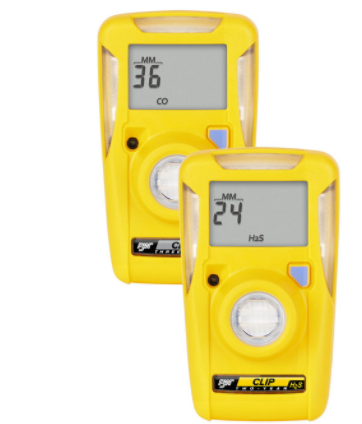

Honeywell霍尼韦尔便携式单气体探测器 BW Clip Series Single Gas Detector

Select Your BW Portable Single Gas Detector:

BWC2-H - BWClip 2y H2S 10/15 - Hydrogen Sulfide (H2S) (Default Alarm Setpoints
 Low 10ppm - High 15ppm) (Alarm Setpoints Range
 Min. 1.6ppm- Max 20ppm) Measuring Range 0-100 Ppm

BWC2-H10 - BWClip 2y H2S 10/10 - Hydrogen Sulfide (H2S) (Default Alarm Setpoints
 Low 10ppm - High 10ppm) (Alarm Setpoints Range
 Min. 1.6ppm- Max 20ppm) Measuring Range 0-100 Ppm

BWC2-H1632 - BWClip 2y H2S 1.6/3.2 - Hydrogen Sulfide (H2S) (Default Alarm Setpoints
 Low 1.6ppm - High 3.2ppm) (Alarm Setpoints Range
 Min. 1.6ppm- Max 20ppm) Measuring Range 0-100 Ppm

BWC2-H1.6 - BWClip 2y H2S 1.6/1.6 - Hydrogen Sulfide (H2S) (Default Alarm Setpoints
 Low 1.6ppm - High 1.6ppm) (Alarm Setpoints Range
 Min. 1.6ppm- Max 20ppm) Measuring Range 0-100 Ppm

BWC2-H35 - BWClip 2y H2S 3/5 - Hydrogen Sulfide (H2S) (Default Alarm Setpoints
 Low 3ppm - High 5ppm) (Alarm Setpoints Range
 Min. 1.6ppm- Max 20ppm) Measuring Range 0-100 Ppm

BWC2-H5 - BWClip 2y H2S 5/5 - Hydrogen Sulfide (H2S) (Default Alarm Setpoints
 Low 1.6ppm - High 5ppm) (Alarm Setpoints Range
 Min. 1.6ppm- Max 20ppm) Measuring Range 0-100 Ppm

BWC2-H510 - BWClip 2y H2S 5/10 - Hydrogen Sulfide (H2S) (Default Alarm Setpoints
 Low 5ppm - High 10ppm) (Alarm Setpoints Range
 Min. 1.6ppm- Max 20ppm) Measuring Range 0-100 Ppm

BWC2-M20100 - BWClip 2y CO 20/100 - Carbon Monoxide (CO) (Default Alarm Setpoints
 Low 20ppm - High 100ppm) (Alarm Setpoints Range
 Min. 5ppm- Max 200ppm) Measuring Range 0-300 Ppm

BWC2-H710 - BWClip 2y H2S 7/10 - Hydrogen Sulfide (H2S) (Default Alarm Setpoints
 Low 7ppm - High 10ppm) (Alarm Setpoints Range
 Min. 1.6ppm- Max 20ppm) Measuring Range 0-100 Ppm

BWC2-H714 - BWClip 2y H2S 7/14 - Hydrogen Sulfide (H2S) (Default Alarm Setpoints
 Low 7ppm - High 14ppm) (Alarm Setpoints Range
 Min. 1.6ppm- Max 20ppm) Measuring Range 0-100 Ppm

BWC2-M - BWClip 2y CO 35/200 - Carbon Monoxide (CO) (Default Alarm Setpoints
 Low 35ppm - High 200ppm) (Alarm Setpoints Range
 Min. 5 Ppm- Max 200ppm) Measuring Range 0-300 Ppm

BWC2-M100 - BWClip 2y CO 100/100 - Carbon Monoxide (CO) (Default Alarm Setpoints
 Low 100ppm - High 100ppm) (Alarm Setpoints Range
 Min. 5ppm- Max 200ppm) Measuring Range 0-300 Ppm

BWC2-M10200 - BWClip 2y CO 10/200 - Carbon Monoxide (CO) (Default Alarm Setpoints
 Low 10ppm - High 200ppm) (Alarm Setpoints Range
 Min. 5ppm- Max 200ppm) Measuring Range 0-300 Ppm

BWC2-M1050 - BWClip 2y CO 10/50 - Carbon Monoxide (CO) (Default Alarm Setpoints
 Low 10ppm - High 50ppm) (Alarm Setpoints Range
 Min. 5 Ppm- Max 200ppm) Measuring Range 0-300 Ppm

BWC2-M2050 - BWClip 2y CO 20/50 - Carbon Monoxide (CO) (Default Alarm Setpoints
 Low 20ppm - High 50ppm) (Alarm Setpoints Range
 Min. 5 Ppm- Max 200ppm) Measuring Range 0-300 Ppm

BWC2-M25100 - BWClip 2y CO 25/100 - Carbon Monoxide (CO) (Default Alarm Setpoints
 Low 25ppm - High 100ppm) (Alarm Setpoints Range
 Min. 5 Ppm- Max 200ppm) Measuring Range 0-300 Ppm

BWC2-M2550 - BWClip 2y CO 25/50 - Carbon Monoxide (CO) (Default Alarm Setpoints
 Low 25ppm - High 50ppm) (Alarm Setpoints Range
 Min. 5 Ppm- Max 200ppm) Measuring Range 0-300 Ppm

BWC2-M2575 - BWClip 2y CO 25/75 - Carbon Monoxide (CO) (Default Alarm Setpoints
 Low 25ppm - High 75ppm) (Alarm Setpoints Range
 Min. 5 Ppm- Max 200ppm) Measuring Range 0-300 Ppm

BWC2-M30100 - BWClip 2y CO 30/100 - Carbon Monoxide (CO) (Default Alarm Setpoints
 Low 30ppm - High 100ppm) (Alarm Setpoints Range
 Min. 5 Ppm- Max 200ppm) Measuring Range 0-300 Ppm

BWC2-M30200 - BWClip 2y CO 30/200 - Carbon Monoxide (CO) (Default Alarm Setpoints
 Low 30ppm - High 200ppm) (Alarm Setpoints Range
 Min. 5 Ppm- Max 200ppm) Measuring Range 0-300 Ppm

BWC2-M3060 - BWClip 2y CO 30/60 - Carbon Monoxide (CO) (Default Alarm Setpoints
 Low 30ppm - High 60ppm) (Alarm Setpoints Range
 Min. 5 Ppm- Max 200ppm) Measuring Range 0-300 Ppm

BWC2-M50 - BWClip 2y CO 50/50 - Carbon Monoxide (CO) (Default Alarm Setpoints
 Low 50ppm - High 50ppm) (Alarm Setpoints Range
 Min. 5 Ppm- Max 200ppm) Measuring Range 0-300 Ppm

BWC2-M50100 - BWClip 2y CO 50/100 - Carbon Monoxide (CO) (Default Alarm Setpoints
 Low 50ppm - High 100ppm) (Alarm Setpoints Range
 Min. 5 Ppm- Max 200ppm) Measuring Range 0-300 Ppm

BWC2-M50200 - BWClip 2y CO 50/200 - Carbon Monoxide (CO) (Default Alarm Setpoints
 Low 50ppm - High 200ppm) (Alarm Setpoints Range
 Min. 5 Ppm- Max 200ppm) Measuring Range 0-300 Ppm

BWC2-S - BWClip 2y SO2 5/10 - Sulfer Dioxide (SO2) (Default Alarm Setpoints
 Low 5ppm - High 10ppm) (Alarm Setpoints Range
 Min. 2ppm- Max 20ppm) Measuring Range 0-100 Ppm

BWC2-S24 - BWClip 2y SO2 2/4 - Sulfer Dioxide (SO2) (Default Alarm Setpoints
 Low 2ppm - High 4ppm) (Alarm Setpoints Range
 Min. 2ppm- Max 20ppm) Measuring Range 0-100 Ppm

BWC2-S25 - BWClip 2y SO2 2/5 - Sulfer Dioxide (SO2) (Default Alarm Setpoints
 Low 2ppm - High 5ppm) (Alarm Setpoints Range
 Min. 2ppm- Max 20ppm) Measuring Range 0-100 Ppm

BWC2-X - BWClip 2y O2 19.5/23.5 - Oxygen 02 (Default Alarm Setpoints
 Low 19.5% Vol - High 23.5% Vol) (Alarm Setpoints Range
 Min. 18% Vol- Max 25% Vol) Measuring Range 0-25% Vol

PRODUCT DESCRIPTION

The most user-friendly, reliable and cost-effective way to ensure safety and compliance

The BW Clip Series of single-gas detectors provides up to three years maintenance-free operation: Just turn on the device and it runs continuously — no need for sensor replacement, battery replacement or battery charging. That means great reliability and no downtime.

Plus, with the two-year version for H2S or CO, you can put the device in a hibernation case when you’re not using it for a week or more — and extend its life by that period of time.

Choose from two detectors; both of which are compact, lightweight and easy to handle, while tough enough for harsh environments and extreme temperatures:

• BW Clip – provides standard operation and no calibration

• BW Clip Real Time – includes a real-time gas level display and the ability to calibrate the device.

Both detectors are compatible with the MicroDock II and the IntelliDoX instrument management systems.

The BW Clip Series is engineered to the highest standards of quality and reliability, keeping you safe and compliant.

Standard Package Contents

•    Detector complete with specified sensor, stainless steel alligator clip and concussion proof housing

•    Test cap

•    Instructions General Specifications

Size 1,6 x 2.0 x 3.4 in. / 4,1 x 5.0 x 8.6 cm

Weight 3.2 oz. / 92 g

Typical battery life Two years (H2S, CO, SO2 or O2) or three years (H2S or CO)

Certifications and approvals

Class I, Div. 1, Gr. A, B, C, D Class I, Zone 0, Group IIC

ATEX:  CE 0539 II 1G
Ex ia IIC T4 Ga IP66/67 DEMKO 14 ATEX 1356

CE: European Conformity

IECEx: Ex ia IIC T4 Ga IECEx UL 14.0063

IP Rating: IP 66/67

Warranty

Two or three years from activation (given normal operation), plus one year shelf life (6 months for O2 model)

Up to three years from activation for two-year H2S and CO detectors when used with the hibernation feature, limited by 24 months of detector operation
