Fireye Phoenix 85UVF self-checking scanners are used to detect ultraviolet emissions from fossil fuel flames such as natural gas, coke oven gas, propane, methane, butane, kerosene, light petroleum distillates and diesel fuels.

Phoenix scanners provide unparalled ease
of installation and operation. With fully
automatic flame characterization and
optimum gain detection initiated from the
streamlined user interface

Product Overview

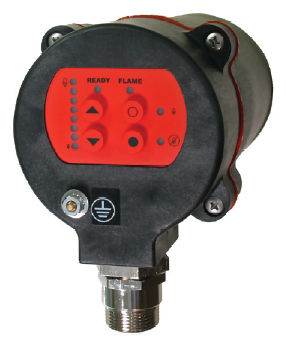

The Fireye Phoenix flame scanners are microprocessor based devices utilizing
a solid state flame detection sensor. The flame detectors incorporate an internal
flame relay with automatically set ON/OFF thresholds, thereby eliminating the
need for a remote flame amplifier or flame switch.
Phoenix scanners detect the amplitude of the modulations (the flame “flicker”)
that occur within the targeted flame, over a wide frequency. During the detector
setup procedure, the amplitudes of the target flame are automatically stored
by the flame detector, together with optimum ON/OFF criteria. The appropriate
sensor gain is automatically selected. Phoenix scanners incorporate full self
diagnostics and electronic self checking.
The Phoenix 85UVF/IRF is available in multiple models differentiated by
detection cell type, levels of hazardous area certifications and agency approvals.
The Phoenix 85UVF/IRF flame scanner is powered by 24Vdc. Electrical
connection is via an 8-pin electrical quick-disconnect (QD) for the Standard
models and internal terminal blocks for CEX models. An analog 4-20mA output
of flame strength is standard.
Phoenix Integrated Scanners

Features & Benefits
• Fireye 85UVF self-checking scanners
are used to detect 295 to 340 nanometers
wavelength ultraviolet emissions.
• Typical UV Applications: Duct Burners,
Industrial Gas Burners, Refinery Applications,
Low NOx Burners, Waste Gas Units
and Incinerators.
• Fireye 85IRF self checking scanners are
used to detect 830 to 1100 nanometers
wavelength infrared emissions. They are
suited for continuous or non-continuous
burner operation.
• Typical IR Applications: Duct Burners,
Industrial Oil Burners, Refinery Applicaions,
Waste Oil Units and Incinerators.
• NEMA 4X & IP66
Class I Division 2 Groups A, B, C, D.
• Reliable Interface
Simple 4 button keypad and informative
LED’s.
• Compatibility
UV, IR and CEX versions.

Phoenix Scanner Bulletins
Pub No.
Product
CU-114 Type 85UVF, 85IRF QD integrated scanner w/internal relay, 60-2780, 35-318 (this version for EC15 and greater) CU-115 Phoenix QD fiber optic Installation instructions, 61-7065, 61-7064
133-733 Installation instructions MicroM MEP237 with MEDC2 using Phoenix WR or InSight with 59-497-020WR 133-732 Installation instructions EP178 / EP378 with EDC1 / EDC2 using Phoenix WR or InSight with 59-497-020WR
133-739 Installation and removal Instructions
for 29-431 Lockout Device on 59-546 & 59-547 cables CU-103 Scanner Insulating Jacket & Vortex-tube Cooler Kit
133-772 Electronics assembly replacement procedure for 85UVF -CEX flame scanners
