Fireye® provides a variety of flame safeguard and combustion efficiency products to the HVAC market place. The following Fireye flame scanners are used in conjunction with the appropriate Fireye flame safeguard controls to provide reliable flame detection on a variety of burner applications and fuel types. Anywhere you are trying to safely control a flame, you will find a Fireye control.

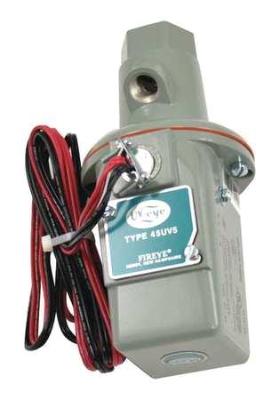

Self-checking ultraviolet scanners for continuously fired applications where recycling is infrequent or absent. The self-checking circuit checks the electronics and the UV tube for proper operation every four seconds during the firing period. Suitable for fuel gases and oil. Replaceable UV tube and (4-314-1) shutter mechanism (61-2914). Mounting 1" NPT or BSP pipe thread with 8 ft. (2.4m) lead wires. Must be installed with metal shielding over the scanner leads. Explosion- proof housings are available for models 45UV5-1005, 45UV5-1007, and 45UV5-1009.

Flame Scanners Bulletins
Pub No.
Product
Pub No.
Product
133-645 Using dual self-check scanners, 61-5745-3 133-733 Installation instructions MicroM MEP237 with MEDC2 using Phoenix WR or InSight with 59-497-020WR
133-732 Installation instructions EP178 / EP378 with EDC1 / EDC2 using Phoenix WR or InSight with 59-497-020WR 133-716 Installation Sheet Shutter Assembly 61-7075-1 used on Scanner Type 55UV5 1007, 1009
133-737 Obsolete 133-744 Sealing union with quartz window
CU-114 85UVF/IRF QD Integrated Flame Scanner with Internal Flame Relay 133-746 Obsolete
SC-101 45UV5 Self-Checking UV Scanners, 4-314-1 SC-102 UV1A3, UV1A6 and UV8A, UV2, UV90, 45UV3-1050
SC-103 48PT1, 48PT2 Infrared Scanners, 69ND1, 4-128-1, 4-263-1 SC-106 UV self-checking Scanner Models:
55UV5-1007, 55UV5-1009
SC-108 UV1AL, UV90L non self-checking scanners SC-109 UV7A4-1-CEX, non-self check scanner used with MBSeries, SBSeries, MBPF-100S and MB-600PF
