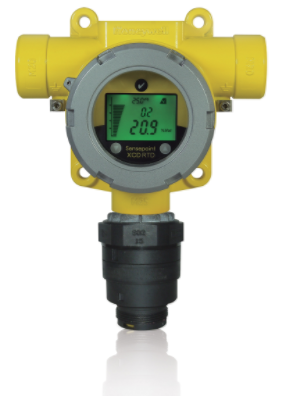

Sensepoint XCD RTD
Explosion-Proof Transmitters

Remotely monitor toxic gases in Class 1, Div 2 areas while reducing the maintenance, training and overall cost of gas monitoring.
Features & Benefits
Common transmitter platform cuts stocking and procurement costs
Obtain maximum coverage in areas not easily accessible
Prevent false alarms with auto-inhibit during maintenance
Quick Specs
Input voltage range: 16 to 32 VDC (24 VDC nominal)
Communication: RS485

Certified temperature range: 40° to +149°F (-40° to +65°C)

Product Overview

Sensepoint XCD RTD from Honeywell Analytics makes it easy on your maintenance team, time and budget when faced with the challenge of monitoring toxic gases in Class I, Div. 2 areas. You can mount the unit up to 100 feet from the transmitter to obtain maximum gas detection coverage in areas not easily accessible or where the sensor would not be visible, as in high-or low-level concealed areas, or detection outside the room being monitored. XCD RTD offers unrivaled flexibility and performance via its easily recognizable display (traffic light pattern) to convey safety status, communication and mounting options, and onboard diagnostics.

Get More Return on Investment from the Practical Advantages of XCD RTD. Sensepoint toxic and oxygen sensors detect a wide variety of industrial gases at common measuring ranges, adding flexibility to your gas monitoring program, reducing your parts procurement costs and expanding your safety net.

Remote gas monitoring has never been this easy and cost-effective. Mount the sensor as shown in the illustration and view gas safety status via the large tri-color display on the transmitter, up to 100 feet away from the sensor. The advantages of this remote monitoring system are added safety, and reduced time spent on maintenance. There’s no need for your team to climb ladders or bring in specialized equipment to view gas concentration readings or to conduct a safety audit. What’s more, the removable sensor design of Sensepoint XCD RTD cuts downtime and eliminates the need for specialized training.

Additional Features and Benefits:

Reduce Cost of Ownership Over Life of the Product
Cut stocking and procurement costs with a common transmitter platform
Reduce maintenance time and expense with non-intrusive, one-man operation
Simplify maintenance with plug-in, removable sensor
Reduce inspection and training time with tri-color ‘traffic light’ display conveying safety status at a glance
Simplify set-up and configuration with non-intrusive magnetic switches

Gain Added Flexibility, Reliability and Performance
Extend gas sensing element up to 100 feet (30 meters) from transmitter; mount in the most difficult to access areas
Reduce likelihood of human error via on-board diagnostics and easy-to-read display
Protect against dust/water ingress with IP66/67 rated stainless steel or aluminum enclosure
Prevent false alarms with auto-inhibit during maintenance
Select sink or source 4-20mA output; integral or remote configuration
Full range of accessories and purchase options let you choose the remote monitoring system that’s right for your application

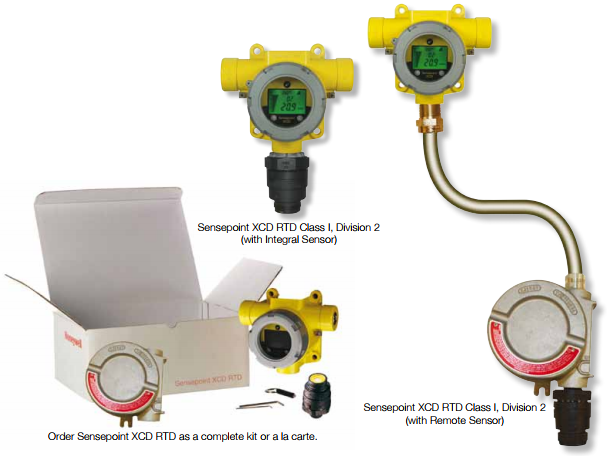

Sensepoint XCD RTD

Remote toxic and oxygen gas detector
for industrial applications
Use 3 wire, 4-20mA and RS485 MODBUS output fixed point detector with in-built alarm and fault relays for the protection of personnel and plant from toxic and oxygen hazards.
Incorporating a transmitter with local display and optional remote mounted sensor, fully configurable via non-intrusive magnetic switch interface with a wide range integral and
remote sensors available.
Electrical
Input Voltage Range 16 to 32VDC (24VDC nominal)
Max Power Consumption Maximum power consumption is dependent on the type of gas sensor being used. Electrochemical cells = 3.7W
Maximum inrush current = 800mA at 24VDC
Current Output Sink or source
Relays 3 x 5A@250VAC. Selectable normally open or normally closed (switch) and energized/de-energised (programmable)
Alarm relays default normally open/de-energized. Fault relay default normally open/energized
Communication RS485
Construction
Material Housing: Epoxy painted aluminium alloy LM25 or 316 stainless steel
Sensor: Polyphenylene sulfide (PPS) (see Sensepoint specifications)
Weight (approx) Aluminium Alloy LM25: 4.4lbs
316 Stainless Steel: 11lbs
Mounting Integral mounting plate with 4 x mounting holes suitable for M8 bolts. Optional pipe mounting kit for horizontal or vertical pipe Ø1.5 to 3" (2" nominal)
Cable Entries 2 x ¾”NPT conduit entries. Suitable blanking plug supplied for use if only 1 entry used. Seal to maintain IP rating
Environmental
IP Rating IP67 in accordance with EN60529:1992
Certified Temperature Range 40ºF to +149ºF (-40ºC to +65ºC)
Detectable Gases and XCD RTD Sensor Performance

Gas Displayed Name Range Lower Alarm Lower Alarm Type Higher Alarm Higher Alarm Type Lowest Alarm Level
Hydrogen Sulphide H2 S 50.0 ppm 10.0ppm Rising 20.0ppm Rising 5.0ppm
Carbon Monoxide CO 200 ppm 40ppm Rising 80ppm Rising 20ppm
Chlorine Cl2 5.0 ppm 0.5 ppm Rising 2.0ppm Rising 5.0ppm
Ammonia NH3 50.0ppm 20.0ppm Rising 30.0ppm Rising 5.0ppm
Hydrogen H2 1000ppm 200ppm Rising 400ppm Rising 100ppm
Nitrogen Monoxide NO 100 ppm 20ppm Rising 40ppm Rising 10ppm
Sulphur Dioxide SO2 15.0ppm 2.0ppm Rising 6.0ppm Rising 1.5ppm
Nitrogen Dioxide NO2 10.0ppm 2.0ppm Rising 4.0ppm Rising 1.0ppm
Oxygen O2 25.0% V/V 19.5%Vol Falling 23.5%Vol Rising 10.0%Vol
Certification
US, Latin America, Canada cCSAus Ex d IIB+H2; Class I, Zone 1, AEx d IIB+H2; Class I, Division 2, Groups B, C & D
Class I, Zone 1, AEx d ia IIC Gb; Class I, Div. 2, Groups B, C and D
Inmetro Ex d IIC T6 Gb, Ex tb IIIC T85ºC Db, IP66, -40ºC < ta < +65ºC
EMC CE: EN50270:2006 EN6100-6-4:2007, Ex d IIC T6 Gb, Ex tb IIIC T85ºC Db, IP66, -40ºC < ta < +65º C
Standards CAN/CSA-C22.2 No. 0-M91, CAN/CSA-C22.2 No. 60079-0:07, CAN/CSA-E60079-11:02, CAN/CSA-C22.2 No. 60079-1:07, ANSI/UL 60079-11:09, ANSI/UL 60079-1:09,
C22.2 No. 142-M1987, C22.2 No. 213-M1987, UL 508 17th Ed., ANSI/ISA -12.12.01-2010 ABNT NBR IEC 60079-0:2008, ABNT NBR IEC 60079-1:2009, IEC 60079-
31:2008 e ABNTNBR IEC 60529:2009.

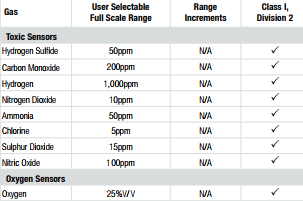

Sensepoint XCD RTD Gases and Ranges

Get More Return on Investment from
the Practical Advantages of XCD RTD
Sensepoint toxic and oxygen sensors detect a wide variety
of industrial gases at common measuring ranges, adding
flexibility to your gas monitoring program, reducing your parts
procurement costs and expanding your safety net.
Remote gas monitoring has never been this easy and
cost-effective. Mount the sensor as shown in the illustration
and view gas safety status via the large tri-color display on
the transmitter, up to 100 feet away from the sensor. The
advantages of this remote monitoring system are added
safety, and reduced time spent on maintenance. There’s no
need for your team to climb ladders or bring in specialized
equipment to view gas concentration readings or to conduct
a safety audit. What’s more, the removable sensor design of
Sensepoint XCD RTD cuts downtime and eliminates the need
for specialized training.
Honeywell Analytics
Serves Every Business
We offer the industry’s most complete
range of gas detection products and
services to meet all customer needs.
Industrial
Honeywell Analytics and renowned legacy
Sieger, Fire Sentry and Manning gas detection
systems with advanced electrochemical,
infrared and open path sensing technologies
» Applications: oil and gas, cold storage,
water/wastewater treatment, chemicals,
engine rooms, plastics and fibers,
agriculture, printing and light industrial
Commercial
Honeywell Analytics and legacy Vulcain
gas detection from standalone units to fully
engineered, multi-point systems, all offering
cost-effective regulatory compliance
» Applications: parking structures, chillers,
mechanical rooms, office towers,
commercial buildings, shopping centers,
swimming pools, golf courses, schools
and universities, laboratories
Portables
Single or multi-gas BW Technologies, Sperian
(Biosystems), Lumidor and other premium
detectors with compact, lightweight designs
ranging from simple alarm only units to
advanced, fully configurable and serviceable
instruments
» Applications: underground utility and
electricity ducts, boiler rooms, post-fire
sites, sewers, industrial plants, industrial
hygiene, first esponder teams,
remote fleets
High Tech/Government
A complete portfolio of gas and chemical
detection instrumentation including infrared
spectroscopy with no cross interference
(MST Technologies), to Chemcassette paperbased
solutions (MDA Scientific) offering
detection down to parts per billion
» Applications: semiconductor manufacturing
and nanotechnology, aerospace propulsion
and safety, specialty chemicals industry,
research laboratories, emergency response
Technical Services
24/7 global network includes post-sales
service and Systems Integration teams
» Emergency call out, service contracts, on/
off-site repair, training and commissioning
» Complete range of spares, consumables
and accessories

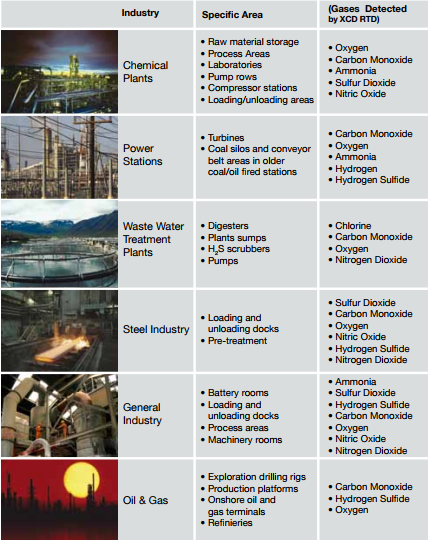

XCD RTD is the right choice for a variety of demanding industrial applications
