Infrared Transmitters
Features & Benefits
Gas sensor junction box featuring simplified maintenance using familiar smartphone technology
Smart junction box provides non-intrusive interaction reducing maintenance time and safety risk
Easy access to hard-to-reach detectors
Bright “traffic light” indicator for safety awareness
Quick Specs
Backward compatible with all versions of Searchpoint Optima Plus and Searchline Excel
Robust Aluminium or Stainless steel housing
Ingress protection IP66 / Type 4X (in accordance with NEMA 250)
Worldwide approvals including ATEX, IECEx, cULus
Product Overview

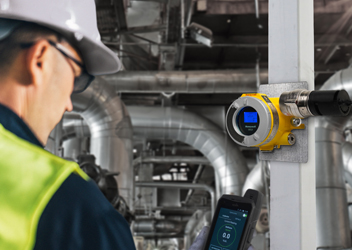

The Optima Excel Local Display (OELD) is a smart junction box for the Searchpoint Optima Plus and Searchline Excel infrared detectors for flammable hydrocarbons. In addition to providing a 4-to-20 mA communications bridge between the detector and controller, gas sensor local display includes an LCD screen for readout and status information, a “traffic light” indicator for at-a-glance detector status, and Bluetooth Low Energy (BLE) connectivity for simplified, nonintrusive maintenance. Just pair the OELD with our intrinsically safe, ruggedized smartphone; then use the OELD smartphone app to interact with the gas detector from up to 10 meters away.
Simplified maintenance with familiar smartphone technology
When you pair a smartphone with OELD smart junction box, you can perform many tasks for your Searchpoint Optima Plus and Searchline Excel detectors wirelessly. Use the OELD mobile app to specify the target gas, configure alarm set points, perform one-man calibrations, access event logs, perform diagnostics, check detector status and more — with no need to go back and forth to the control room, or open the enclosure on your gas detector. That means no hotwork headaches like obtaining permits, declassifying the area or adding more manpower. For detectors in hard-to-reach locations or in a duct, you can position the corresponding OELD smart junction box in an easy-to-access location and use the OELD smartphone app to interact with the detector wirelessly.
At-a-glance visibility
OELD smart junction box has bright indicator lights visible from a distance, where green indicates normal operation, yellow indicates a fault and red indicates an alarm. The LCD screen provides gas detector local display information, clearly showing real-time readings on detector status, including the gas being monitored, the local gas concentration and units of measurement — so you have easy access to status information.
Gas detection that fits the way you work
The OELD smartphone app delivers the familiar user experience you expect — combined with gas detection technology designed to keep you safe while making your job easier. It simplifies detector maintenance and is a cost effective way to get even more value from your Searchpoint Optima Plus or Searchline Excel gas detectors.
OELD
Bluetooth-enabled local
display for Searchline Excel
and Searchpoint Optima Plus
MATERIAL Marine-grade aluminium alloy or 316 stainless steel with 5-coat painted finish
WEIGHT Aluminium version 2.3 kg (5 lb), stainless steel version 5.0 kg (11 lb)
DIMENSIONS 159 x 197 x 114 mm (6 ¼ x 7 ¾ x 4 ½ inch)
CABLE ENTRIES
5 x M25 (ATEX/IECEx version) or 5 x ¾” NPT (cULus version).
One reserved for sensor connection.
3 blanking plugs supplied for unused entries.
TERMINATION 2 x pluggable rising-clamp type for connection to gas detector and field wiring.
Accepts cable sizes of 0.5 to 2.5mm2
, 12 to 28 AWG
STORAGE TEMPERATURE -40 to +65 °C (-40 to 149 °F)
OPERATIONAL
TEMPERATURE
-40 to +65 °C (-40 to 149 °F)
-60 to +65 °C (-76 to 149 °F) (CU TR-EX version only)
HUMIDITY 0 to 99% RH (non-condensing)
DISPLAY LCD module showing digital readout of sensor output, bar chart representation, units of measurement, status icons for alarm, maintenance and active
Bluetooth connection.
CONFIGURABLE DISPLAYED
INFORMATION
Displayed information fully user-configurable using the OELD mobile app.
Units of measurement selectable from:
• %LEL, %VOL, ppm, kppm, mg/m3
, g/m3
(point detectors)
• LEL.m, ppm.m (open path detectors)
• mA, A, dB, DBA (other)
Gas name (up to 4 alpha-numeric characters)
Measurement range
VISUAL INDICATION Green/yellow/red/blue multi-colour backlit display for indication of detector and OELD status.
Green (normal) indication can be disabled via app.
POWER SUPPLY 18 to 32 Vdc (24 Vdc nominal), <2 W
INTERFACES
Bluetooth® (BLE) non-intrusive connection to suitable mobile device running the OELD mobile app.
Range up to 10 m (30 feet) (mobile device dependant)
Internal RS-485 connection to Searchpoint Optima Plus or Searchline Excel via SHC-1 through the SHC Protection Device
COMPATIBLE GAS DETECTORS Searchpoint Optima Plus. Searchine Excel, Searchline Excel Cross-Duct, generic 4 to 20 mA devices
ENVIRONMENTAL
PROTECTION IP66 / Type 4X (in accordance with NEMA 250)
CORE APPROVALS EN 50270: 2015 (EMC)
IEC/EN/UL/CSA 61010 (Electrical Safety)
OELD SPECIFICATION
SAFETY APPROVALS
ATEX/IECEx
DEMKO 16 ATEX 1693X
IECEx [UL 16.0066X]
II 2 GD
Ex db IIC T6
Ex tb IIIC T85 °C
Tamb -40 to +65 °C
EN 60079-29-1 Approved Accessory
cULus
Class I, Div 1, A, B, C & D
Class II, Div 1 F & G, Class III, Div 1
Tamb -55 to +65 °C
Temp Code T6
Class I, Zone 1, AEx d IIC T6
Class I, Zone 21, AEx tb IIIC T6
ISA 60079-29-1
CU TR-Ex (Russian Customs Union), Tamb -60 to +65 °C*
CCCF*
Inmetro*
NEPSI+*
PESO+*
MARITIME APPROVALS* Type approved to DNV, BV+, Lloyds+, ABS, EN 60945 (EMC) IEC 60092-504
OTHER APPROVALS Bluetooth Certified, Radio Equipment Directive (RED), FCC+, country-specific wireless approvals
BLUETOOTH COMMUNICATION
SECURITY
Certificate-based mutual authentication.
Encryption to AES128
