Sensepoint XRL
Industrial Gas Systems

Thanks to Honeywell’s use of Bluetooth Low Energy (BLE) technology, you can install, commission and maintain your Sensepoint XRL gas detector — all from the palm of your hand. Simply pair the detector with your smartphone; then use Honeywell’s Sensepoint gas detector app to wirelessly perform many tasks — from adjusting set points to checking fault codes — from up to 10 meters away. Sensepoint XRL is available as a flammable gas detector for the detection of potentially explosive gases, or as a toxic gas detector for the detection of a range of toxic gas hazards commonly found in industrial facilities.
Features & Benefits
Manage installation, commissioning and maintenance from the gas detector app on your smartphone or tablet
Award-winning design
Robust aluminum housing
Worldwide hazardous area approvals
Compatible with Touchpoint Plus and other industry-standard controllers
Quick Specs
mA loop or Modbus RTU output
Multi-colour LED status indicator
Operating temperature range -40°C to +65°C, IP66, Type 4X

Choice of toxic, Oxygen or flammable sensors

Product Overview

Sensepoint XRL is a fixed point gas detector with Bluetooth that allows the user to connect the gas detector to a smartphone or tablet running the Sensepoint gas detector app. Sensepoint XRL is available as a flammable gas detector for the detection of potentially explosive gases, or as a toxic gas detector for the detection of a range of toxic gas hazards commonly found in industrial applications.

Winner of both iF and Red Dot design awards, Sensepoint XRL is designed with simple and quick installation in mind. And for initial calibration, all you need is our Sensepoint App on your smartphone and a cylinder of calibration gas — no need for walkie-talkie guidance with the control room. Use the Sensepoint App to create a profile for the detector, choose alarm set points, run test procedures and automatically generate a commissioning report, which you can send from your phone to other stakeholders or store for easy access in a safety inspection. No need for paperwork.

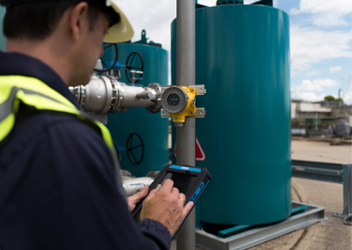

Sensepoint XRL's smartphone-based experience significantly reduces the time you spend on gas detector maintenance. And when doing maintenance checks, our Sensepoint App puts diagnostic information at your fingertips.

It has bright indicator lights visible from a distance, making it easy to locate a detector requiring maintenance.  And the Bluetooth connection is non-intrusive so there is no need for a hot work permit.

You can also save valuable time with easy reporting on the Sensepoint App. Whether you need a maintenance report for a certain detector or a gas history for a safety audit, just select the right report on the app and send it to other parties — or store it for easy recall.  For a complete gas leak detection system, Sensepoint XRL has the perfect partner in Touchpoint Plus, a configurable, easy-to-use controller for up to sixteen channels of gas detection. Find out more about Touchpoint Plus Here.

Sensepoint XRL
Fixed Gas Detector
Sensepoint XRL is a fixed point gas leak detector that is designed to
meet the needs of industrial applications. With over 50 years experience
in gas leak detection, Honeywell offers a flexible range of highly-reliable
sensing devices to meet those needs.
• Quick installation
• Rapid configuration
• Simple to operate
• Straightforward to maintain
Honeywell innovation enables customers to pair the gas detector with
their mobile phone, and then use an app to perform many tasks related
to installation, commissioning and maintenance.
Flexible Output Options
Sensepoint XRL is available with either mA loop analog output
or Modbus RTU. The result is a flexible solution that can easily be
incorporated into legacy systems as well as new installations.
Easy Control and Maintenance
Sensepoint XRL's smartphone interface makes for much faster
calibration, configuration and bump tests. Inspecting the status and
settings of individual Sensepoint XRL detectors is simple. Use the
mobile app to:
• Read gas concentrations in real-time
• Reconfigure settings
• Check unit histories
Automated Reporting
Increase the efficiency of your operations and reduce administration
time. The app and Sensepoint XRL provides easy access to diagnostic
information and generates calibration reports at the touch of a screen.
Compatible System Controller
Touchpoint Plus is the perfect complement to Sensepoint XRL, providing
an intuitive, easy to operate gas detection solution to meet the needs of
your business.
Visual Integration
Clean aesthetics and a choice of colors mean
that the detector appearance can be selected
to compare or contrast with the environment in
which it is being used.
Typical Applications
• Manufacturing facilities and factories
• Water treatment plants
• Battery charging facilities
• Vehicle test facilities
• Petrochemical plants
• Fuelling depots
Accessories
• Calibration cap
• Collecting cone
• Pole Mount Bracket Kit
• Duct Mount Kit
• Weather Protection
• Flow Housing

FEATURES & BENEFITS
• Choose from a
range of mA or
Modbus output
versions for flexible
system design to
meet the
customers
requirements.
• Selectable source
or sink current for
analog output
enables one
detector to be
suitable for both
system
configurations.
• The ingress
protection of NEMA
4X/IP66 allows
units to be installed
in outdoor
environemtns.
• Simplified
maintenance with
familiar
smartphone
technology saves
money and time.
• Multi-color visual
indicator to show
status makes it
easier to know the
detector status
immediately and
identify detectors
that require
attention or are
warning of danger.
• Manage the
detector without
making a physical
connection.
Remove the need
for physical access
to hard-to-reach
devices.
• One person
calibration without
the need to open
the detector. Saves
time and removes
need for hot work
permit.

Sensepoint XRL Technical Specifications

PHYSICAL PROPERTIES
DIMENSIONS 118 x 159 x 93 mm
( 4.4 x 6.2 x 3.6 in )
WEIGHT 1400 g (3.1 lb)
CASING MATERIAL Aluminum alloy LM20 (charcoal or yellow)
INGRESS PROTECTION
RATING
IP66, NEMA 4X
LIFETIME 10 years (excludes sensor)
AVAILABLE SENSORS
FLAMMABLE, TOXIC GASES
AND OXYGEN RANGES
• Combustible: O to 100 % LEL (adjustable
between 20 and 100% LEL, Factory calibrated
to Methane)
• O₂: 0 to 25% vol
• CO: O to 300 ppm (adjustable between
50 and 1000 ppm)
• H₂: O to 1000 ppm
• H₂S Low Range: 0 to 50 ppm (adjustable between
10 and 50 ppm)
• H₂S High Range: 0 to 100 ppm (adjustable
between 50 and 200 ppm)
POWER SUPPLY
DC INPUT VOLTAGE 24 V DC†
AC INPUT VOLTAGE 24 V AC‡, 50/60 Hz
INRUSH CURRENT 850 mA
OUTPUT
ANALOG OUTPUT 0 to 22 mA
DIGITAL OUTPUT Modbus RTU
MAXIMUM POWER CONSUMPTION
mA VERSIONS < 1.5 W (toxic), < 2.6 W (flammable)
MODBUS VERSIONS < 1.0 W (toxic), < 2.0 W (flammable)
CONNECTION
TYPE Pluggable rising clamp style,
0.5 to 2.5 mm2
, 20 to 13 AWG
† mA versions: 11 to 32 VDC, Modbus versions: 9 to 32 VDC
‡
 All versions: 20 to 27 VAC

USER INTERFACE
VISUAL INDICATOR Multi-colour LED light ring
• Flashing green: Normal§
• Flashing red: Alarm
• Flashing green and yellow: Warning
• Flashing yellow: Fault
• Solid yellow: Inhibited
• Flashing blue: Bluetooth pairing in progress
• Solid blue: Bluetooth connection established
WIRELESS INTERFACE Bluetooth 4.0 (Bluetooth Low Energy). Dedicated
mobile app, enabling wireless configuration and
maintenance. Connect up to 10 m (30 ft) away
(mobile device dependent). Use a compatible
smartphone or other mobile device running Android
4.3 or above.
OPERATING ENVIRONMENT
OPERATING TEMPERATURE −40 to 65 °C (−40 to 140 °F)
STORAGE TEMPERATURE 0 to 30 °C (32 to 86 °F)
HUMIDITY 0 to 99% (non-condensing)
ATMOSPHERIC PRESSURE 90 to 110 kPa
CERTIFICATIONS
ELECTRICAL SAFETY EN/IEC/UL 61010-1
CSA C22.2 No. 61010-1-12
EMC EN 50270:2015
RADIO RED, FCC, IC
HAZARDOUS AREA • ATEX
 II 2 GD
Ex db IIC T6 Gb
Ex tb IIIC T85 °C Db
Tamb −40 to +65 °C
• IECEx
Ex db IIC T6 Gb
Ex tb IIIC T85 °C Db
Tamb −40 to +65 °C
• cULus
Class I, Division 1 & 2, Groups B, C and D
Class II, Division 1 & 2, Groups E, F and G
Class I, Zone 1, AEx db IIC T6
Zone 21, AEx tb IIIC T85°C, IP6X
Ex db IIC T6 GbX
Ex tb IIIC T85°C DbX
Tamb −40 to +65 °C, Temp Code T6
GAS PERFORMANCE CSA C22.2 No.152-M1984, UL 2075, AS 1668.2
§ LED behavior in normal condition can be changed by the user: green confidence flash, solid
green or off.

Gas Detector Type User Selectable Range Default Range User Selectable Cal Gas Range Default Cal Point Response Time t90 (s) Resolution Accuracy ( ppm or % of applied gas which is the greater)
Oxygen SPLIO1... Fixed, 25.0% vol 25.0% vol Fixed 20.9% vol < 30 0.1% vol < ±0.6 %vol
Flammable (CAT) SPLIF6... 20 to 100% LEL 100% LEL 50% LEL < 30 1% LEL < ±5 %LEL
Carbon Monoxide SPLIC1... 50 to 1000 ppm 300 ppm 100 ppm < 40 1 ppm < ±2 ppm or ±20%
Hydrogen Sulfide (low range) SPLIH1... 10.0 to 50.0 ppm 50.0 ppm 25.0 ppm < 40 0.1 ppm < ±0.3 ppm or ±20%
Hydrogen Sulfide (high range) SPLIH2... 50 to 200 ppm 100 ppm
20 to 70% of
selected full scale
range
25 ppm < 40 1 ppm < ±5 ppm or ±20%
Hydrogen SPLIG1... 1000 ppm only 1000 ppm Fixed 500 ppm < 105 1 ppm < ±8 ppm or ±20%
Gas Sensor Operating Temperature Default Alarm Points & Types LAL LDL
Min Max A1 Default A1 Type A1 Options A2 Default A2 Type A2 Options
Oxygen −20 °C 50 °C 23.5% vol Rising Rising/Disabled 19.5% vol Falling Falling/Disabled 5.0% vol 20.6 to 21.2% vol 0 to 3.0% vol
Flammable (CAT) −20 °C 50 °C 20% LEL Rising Rising/Disabled 50% LEL Rising Rising/Disabled 10% LEL 6% LEL
Carbon Monoxide −20 °C 50 °C 30 ppm Rising Rising/Disabled 100 ppm Rising Rising/Disabled 15 ppm 13 ppm
Hydrogen Sulfide (low range) −20 °C 50 °C 10 ppm Rising Rising/Disabled 20 ppm Rising Rising/Disabled 1.0 ppm 0.8 ppm
Hydrogen Sulfide (high range) −20 °C 50 °C 10 ppm Rising Rising/Disabled 20 ppm Rising Rising/Disabled 5 ppm 1 ppm
Hydrogen −20 °C 50 °C 200 ppm Rising Rising/Disabled 400 ppm Rising Rising/Disabled 100 ppm 30 ppm

Ordering Information

C.1 Detectors
Part number Description
SPLIO1BAXCNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, O2 25.0% v/v, 4–20 mA, Charcoal, ¾″ NPT
SPLIO1BAXYNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, O2 25.0% v/v, 4–20 mA, Yellow, ¾″ NPT
SPLIO1BMXCNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, O2 25.0% v/v, Modbus, Charcoal, ¾″ NPT
SPLIO1BMXYNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, O2 25.0% v/v, Modbus, Yellow, ¾″ NPT
SPLIC1BAXCNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, CO, 4–20 mA, Charcoal, ¾″ NPT
SPLIC1BAXYNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, CO, 4–20 mA, Yellow, ¾″ NPT
SPLIC1BMXCNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, CO, Modbus, Charcoal, ¾″ NPT
SPLIC1BMXYNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, CO, Modbus, Yellow, ¾″ NPT
SPLIH1BAXCNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, H2S (L), 4–20 mA, Charcoal, ¾″ NPT
SPLIH1BAXYNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, H2S (L), 4–20 mA, Yellow, ¾″ NPT
SPLIH1BMXCNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, H2S (L), Modbus, Charcoal, ¾″ NPT
SPLIH1BMXYNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, H2S (L), Modbus, Yellow, ¾″ NPT
SPLIH2BAXCNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, H2S (H), 4–20 mA, Charcoal, ¾″ NPT
SPLIH2BAXYNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, H2S (H), 4–20 mA, Yellow, ¾″ NPT
SPLIH2BMXCNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, H2S (H), Modbus, Charcoal, ¾″ NPT
SPLIH2BMXYNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, H2S (H), Modbus, Yellow, ¾″ NPT
SPLIG1BAXCNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, H2, 4–20 mA, Charcoal, ¾″ NPT
SPLIG1BAXYNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, H2, 4–20 mA, Yellow, ¾″ NPT
SPLIG1BMXCNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, H2, Modbus, Charcoal, ¾″ NPT
SPLIG1BMXYNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, H2, Modbus, Yellow, ¾″ NPT
SPLIF6BAXCNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, CH4 (CAT), 4–20 mA, Charcoal, ¾″ NPT
SPLIF6BAXYNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, CH4 (CAT), 4–20 mA, Yellow, ¾″ NPT
SPLIF6BMXCNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, CH4 (CAT), Modbus, Charcoal, ¾″ NPT
SPLIF6BMXYNUZZ Sensepoint XRL Transmitter, cULus C1D1, Type 4X, CH4 (CAT), Modbus, Yellow, ¾″ NPT
SPLIO1BAXCMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, O2 25.0% v/v, 4–20 mA, Charcoal, M20
SPLIO1BAXYMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, O2 25.0% v/v, 4–20 mA, Yellow, M20
SPLIO1BMXCMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, O2 25.0% v/v, Modbus, Charcoal, M20
SPLIO1BMXYMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, O2 25.0% v/v, Modbus, Yellow, M20
SPLIC1BAXCMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, CO, 4–20 mA, Charcoal, M20
SPLIC1BAXYMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, CO, 4–20 mA, Yellow, M20
SPLIC1BMXCMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, CO, Modbus, Charcoal, M20
SPLIC1BMXYMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, CO, Modbus, Yellow, M20
SPLIH1BAXCMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, H2S (L), 4–20 mA, Charcoal, M20
SPLIH1BAXYMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, H2S (L), 4–20 mA, Yellow, M20
SPLIH1BMXCMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, H2S (L), Modbus, Charcoal, M20
SPLIH1BMXYMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, H2S (L), Modbus, Yellow, M20
SPLIH2BAXCMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, H2S (H), 4–20 mA, Charcoal, M20
SPLIH2BAXYMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, H2S (H), 4–20 mA, Yellow, M20
SPLIH2BMXCMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, H2S (H), Modbus, Charcoal, M20
SPLIH2BMXYMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, H2S (H), Modbus, Yellow, M20
SPLIG1BAXCMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, H2, 4–20 mA, Charcoal, M20
SPLIG1BAXYMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, H2, 4–20 mA, Yellow, M20
SPLIG1BMXCMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, H2, Modbus, Charcoal, M20
SPLIG1BMXYMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, H2, Modbus, Yellow, M20
SPLIF6BAXCMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, CH4 (CAT), 4–20 mA, Charcoal, M20
SPLIF6BAXYMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, CH4 (CAT), 4–20 mA, Yellow, M20
SPLIF6BMXCMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, CH4 (CAT), Modbus, Charcoal, M20
SPLIF6BMXYMAZZ Sensepoint XRL Transmitter, ATEX/IECEx Ex d, IP66, CH4 (CAT), Modbus, Yellow, M20
C.2 Accessories
Part number Description
SPXRLCAL Sensepoint XRL Calibration Cap
SPXRLFLW Sensepoint XRL Flow Housing
SPXRLDMK Sensepoint XRL Duct Mount Kit
2308B0923 Pole Mount Bracket Kit
SPXCDWP Weather Protection
SPXCDCC Collection Cone. Order together with SPXCDWP
C.3 Consumables
Part number Description
SPXCLZZO1SS Sensepoint XCL/XRL Replacement Sensor, O2
SPXZZRLF6SS Sensepoint XRL Replacement Sensor, Flammable CAT
SPXCLRLC1SS Sensepoint XCL/XRL Replacement Sensor, CO
SPXCLRLH1SS Sensepoint XCL/XRL Replacement Sensor, H2S (Low and High Range)
SPXCLRLG1SS Sensepoint XCL/XRL Replacement Sensor, H2
C.4 Spares
Part number Description
SPXRLSK1 Sensepoint XRL Service Kit
SPXRLSCP Sensepoint XRL Sensor Cover
SPXRLSCC Sensepoint XRL Sensor Cover Trim Ring - Charcoal
SPXRLSCY Sensepoint XRL Sensor Cover Trim Ring - Yellow
SPXRLCOV Sensepoint XRL Top Cover
SPXRLSPN Sensepoint XRL Stopping Plug ¾″ NPT
SPXRLSPM Sensepoint XRL Stopping Plug M20
SPXRLMAO1 Sensepoint XRL Pluggable +Base Electronics Module, 4–20 mA, O2
SPXRLMAC1 Sensepoint XRL Pluggable +Base Electronics Module, 4–20 mA, CO
SPXRLMAH1 Sensepoint XRL Pluggable +Base Electronics Module, 4–20 mA, H2S (L)
SPXRLMAH2 Sensepoint XRL Pluggable +Base Electronics Module, 4–20 mA, H2S (H)
SPXRLMAG1 Sensepoint XRL Pluggable +Base Electronics Module, 4–20 mA, H2
SPXRLMAF1 Sensepoint XRL Pluggable +Base Electronics Module, 4–20 mA, Flammable CAT
SPXRLMMO2 Sensepoint XRL Pluggable +Base Electronics Module, Modbus, O2
SPXRLMMC1 Sensepoint XRL Pluggable +Base Electronics Module, Modbus, CO
SPXRLMMH1 Sensepoint XRL Pluggable +Base Electronics Module, Modbus, H2S Low
SPXRLMMH2 Sensepoint XRL Pluggable +Base Electronics Module, Modbus, H2S High
SPXRLMMG1 Sensepoint XRL Pluggable +Base Electronics Module, Modbus, H2
SPXRLMMF1 Sensepoint XRL Pluggable +Base Electronics Module, Modbus, Flammable CAT
