Touchpoint Plus Controller
Gas Detection Controllers

Touchpoint Plus is an easily configurable, wall mounted control system that supports up to sixteen channels of gas detection. Its intuitive user interface and modular approach enables you to take control of your safety system and configure it to meet your needs for a wide range of applications.
Features & Benefits
Quick and easy setup and use
Intuitive touchscreen user interface
Traffic light style status at a glance
Ergonomic industrial design
Suited to a wide range of industries
Quick Specs
Supports up to 16 channels of gas detection
Accepts 2 or 3 wire mA or mV inputs
Touchscreen LCD

Built-in powered alarm relays.

Product Overview

Touchpoint Plus takes the user experience to the next level. With its unique user interface, operators are able to take control of their gas detection system, safe in the knowledge that their site and staff are protected and productivity is maintained.

Designed to work across multiple industries, Touchpoint Plus' modular architecture enables you to customize your system to meet your specific application requirements.

Large touchscreen LCD
Built around its intuitive, ergonomic touchscreen, Touchpoint Plus is designed for ease. From here operators can configure, operate and maintain their gas detection system simply and efficiently by simply touching the screen. The multilingual interface simplifies operation, reducing training requirements and costs. Real-time data is presented in an easy to navigate menu system, whilst historical data can be downloaded to monitor developing threats.

At a glance system visibility
When fast and informed decisions need to be made, Touchpoint Plus' full color traffic light style status indicators provide clarity from a distance allowing operators to see system status at-a-glance and make time critical decisions easily.

Unique industrial design
Made of high-impact polymer plastic, Touchpoint Plus is versatile and durable. It is dust-proof, water-proof and has been tested to withstand the toughest environments in which our customers operate - indoors and out. Touchpoint Plus can be directly wall mounted, or for an easier 1-man installation there is an optional mounting plate. Behind the hinged front cover there is plenty of space for wiring and a unique tiered terminal arrangement for easy access. Cable entries are pre-drilled and sealed ready to use, further reducing installation time and cost.

Honeywell Analytics' full system solution
Touchpoint Plus provides a reliable safety solution for small scale gas detection systems across a wide range of applications and industries. As the heart of your gas detection system, Touchpoint Plus is designed to work with Honeywell’s industry leading gas detectors and drive actuators, audible and visual alarms to provide a complete end-to-end, highly configurable safety solution.

Touchpoint Plus
A whole new control experience
General specification
Capacity Up to 8 channels with base unit, up to 16 channels with expansion unit
Type of inputs 2 or 3 wires, mA, mV, max. 15W per channel, max 40W total (with dedicated A/V drive) / 68W total (without dedicated A/V drive)
Size (wall-mounted version) 426 mm × 300 mm × 156 mm (16.8” x 11.8” x 6.1”)
Housing Material Polycarbonate ABS
Weight Max 8.5 kg (18.7 lb), max 17 kg (37.4 lb) with expansion unit
User Interface (UI) - Controller Only
Display 7’’ color LCD touchscreen. Graphic User Interface
Visual indicators 3 LEDs for master indicators. LED for each channel. Green: Normal; Yellow: Fault: Inhibit; Red: Alarm
Audible alarm ≥ 70dB @ 1m
Button Common for reset/mute operation
Language English, French, German, Italian, Dutch, Spanish, Portuguese, Russian, Chinese
Power Supply*
Power AC 110/220VAC, 50-60Hz Manual switching
Power DC 18 to 32 VDC (+/-10%) Typical 24VDC
Power consumption Max 105W (including detector and external devices), max 210W with expansion unit
Environmental
Operating -10°C to +55°C (14°F to +131°F) continuous, up to 95% RH (non-condensing), IP65 and NEMA 4X
Storage Instrument -25°C to +60°C. (-13°F to +140°F), up to 95% RH (non-condensing)
Available I/O Modules
4~20mA input 2 or 3 wire, 2/4/8 channel modules, 10/12/16 with expansion unit
mV input Catalytic type flammable gas detectors (Honeywell models). 2/4/8 channel modules, 10/12/16 with expansion unit
Dual Input 2 channel mA + 2 channel mV module or 4 channel mA + 4 channel mV module
Relay output 12 or 24 relay outputs, NO/C/NC changeover, 1.7A@30VDC/250VAC, user configurable - energized/de-energized,
latching/non latching, time delay
4~20mA output 4 or 8 isolated repeated mA outputs, 0-22mA, 0-100%FSD = 4-20mA
Common inputs Remote reset, remote inhibit
Common outputs Four powered A/V outputs for alarms and fault, three common alarm outputs
Approvals
Electromagnetic Compatibility
and Electrical Safety
EMC/RFI (EN 50270:2015)
LVD (EN 61010-1:2010)
CSA-C22.2 No. 61010-1-04
UL 61010-1 (3rd Edition) and 508
Performance** Designed to meet - EN 50271:2010; EN 60079-29-1:2007; EN 45544-1 /-2 /-3:2015;
EN 50104:2010 C22.2 No. 152-M1984, ISA 12.13.01
Safety Integrity** Designed to meet - IEC/EN 61508:2010 and EN 50402:2005+A1:2008 SIL2 certification
Hazardous Location Class I, Division 2, Group A, B, C and D or non-hazardous only
Others
Backup battery 22.2V Lithium Ion Battery, 2600mAh capacity (>30 minutes for typical system)
Data logging Configuration, logged events and data
Communication MODBUS TCP, WEB monitoring and MODBUS RTU

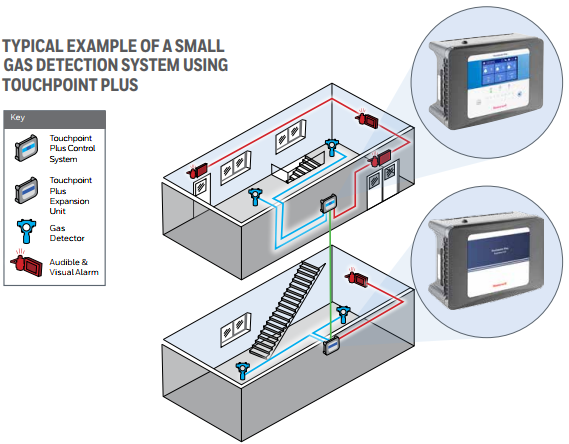

TYPICAL EXAMPLE OF A SMALL
GAS DETECTION SYSTEM USING
TOUCHPOINT PLUS

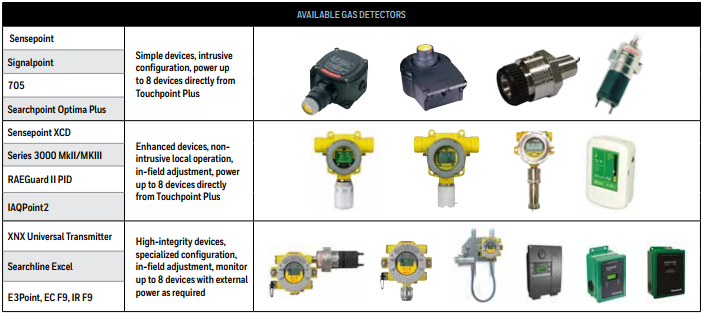

AVAILABLE GAS DETECTORS
