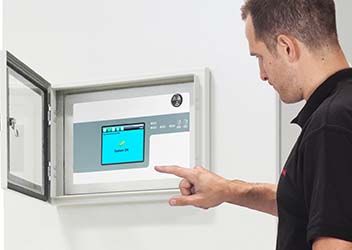

Touchscreen user interface

Product Overview

Honeywell’s Touchpoint Pro makes gas control system design, installation, configuration and operation simple. Touchpoint Pro uses a ‘building block’ approach, providing unrivalled flexibility. The building block approach employed by Touchpoint Pro delivers real value by being able to adapt to each unique system requirement. Ease of use and intuitive configuration ensures that installation, set-up and ongoing maintenance costs are reduced, providing a ‘no compromise’ solution designed to reduce the cost of on-site safety.

Flexible architecture
Touchpoint Pro has been designed to deliver flexibility, allowing the system to be freely configured to meet customers’ varying needs. Touchpoint Pro’s modularity means that any system topology can be built, including centralised, distributed I/Os, or a mix of both.

24/7 visibility of system status
Touchpoint Pro’s central controller has a Webserver interface, which can be accessed when it is connected to a network, allowing users to remotely view status and event history, and acknowledge, reset or inhibit channels. This feature offers the possibility of system monitoring and data analysis from a remote location using multiple devices including tablets, smart phones and remote computers.

Simple installation and maintenance
Using a simple building block technique to create your system, Touchpoint Pro offers multiple features that simplifies installation, setup and ongoing maintenance. A key feature to this is the preloaded sensor catalogue, which contains a complete listing of all Honeywell Analytics’ gas sensors, each with a full default configuration setting. A user can choose to configure input channel settings from the sensor catalogue, resulting in a quick and simple three step configuration process. The rest of the configuration will be loaded automatically.

Wide selection of inputs/outputs accepted
The Touchpoint Pro Input/Output plug-in modules can be combined up to a maximum of 16 input modules (64 channels) and 32 output modules (128 channels). Modules can be located in any Touchpoint Pro enclosure and power distribution is via the communication/power Rail. Touchpoint Pro accepts analogue, digital and relay modules making it one of the most flexible controllers available.

Intuitive user interface
The heart of the Touchpoint Pro is the central controller, which includes the user interface. The user interface features a full colour LCD touch screen, and provides engineers with an intuitive solution to system set-up and deployment. Easily accessible icons, supported by drop-down menus ensure that even the most complex of system configurations can be commissioned with efficiency.

Aside from ease of use, Touchpoint Pro’s user interface also includes some valuable aspects that help engineers save time, whilst setting up and commissioning a system.

Ordering Information

TPPR System ID Configuration
Your TPPR has a unique System ID that incorporates a Globally Unique Identifier (GUID). A typical example might be TPPR–HW–MF–NXHXXL–ZII8421526123, where the first 14
characters show the system's configuration and the last 13 characters are the GUID (see box-out below).
The System ID and GUID are produced in digital, human and barcode reader formats for ease of tracking and quality control. They can be found on both the TPPR rating plate and in the UI
software.
The following table shows how your TPPR System ID is constructed and this GUID can be used to provide valuable information to Technical Support if you need technical help or warranty
service.
System ID Product
Name Unit Type Variant* Ventilation Plinth Logo BIB CCB-R UI
See Example
below. TPPR
HW = Wall
Mount
S = Small
M = Medium
L = Large
+
F = Front
Access
R= Rear
Access
X = None
X = None X = None X = None X = None L = Local
(With UI)
N = Natural
HF = Floor
Standing P = 100mm H =
Honeywell M = Modbus R =
Redundancy
R = Remote
(Without UI) F = Forced
Example: TPPR– HW– MF– N X H X X L
FS = Front Access Floor Cabinet with 5 Backplanes
RS = Rear Access Floor Cabinet with 5 Backplanes
TS = Small Stainless Steel Wall Cabinet
Z = Zone 2 Div. 2 Stainless Steel Wall Cabinet
S = Supplier Code i.e. Z for HA Poole UK
II = Bill of Materials Issue Number
PPP = Part Code i.e. 842 for a standard WM
Enclosure
YY =Year of Manufacture
WW = Week of Manufacture
NNN = Sequential Serial Number
