FS7 Flame Detector

High Tech & Gov. Systems

Multi-spectral WideBand IR™, Near Band IR and Visible Band flame detectors are designed specifically for semiconductor Clean Room fire protection applications.

Features & Benefits
Unique two-stage fire detection response
Immune to false alarm sources
Detects hydrocarbon and non-hydrocarbon fires
Quick Specs
Field of view: 120° horizontal and vertical
Operating Voltage: 24 VDC nominal (18-28 VDC) - regulated

Operating temperature range: 32° to +158°F (0 to 70°C)

Product Overview

The FS7 Flame Detector provides an intelligent two-stage response to semiconductor wet bench fires:

Stage 1: Alert. This is the first-stage response to a small fire with a heat energy output of 3 kW (the equivalent of a 4-inch diameter polypropylene pool fire). This allows time for the fire to self-extinguish.

Stage 2: Alarm. If the fire does not self-extinguish, and grows to the Factory Mutual specified heat energy threshold of 13 kW (the equivalent of an 8-inch diameter polypropylene pool fire), the second-stage response is activated.

The FS7-2173 is used with the FS7-130-SX Controller or Control Panel FSWB. Controller and Control Panel supply power to detectors monitor the status of all detectors and communicate with the detectors via the digital RS-485 communication channel. FS7-2173 is supplied with a standard 20 ft. cable connector. Detectors are connected to the controller or control panel using the self-locking connectors and junction boxes. This allows for fast and easy connections eliminating wiring problems. Each detector can store up to six time and date stamped FirePics™ (pre-event multi-spectral sensor array data) in non-volatile memory. Controller and control panel can also store event history table in the non-volatile memory, which contains the time and date stamped alert, alarm and fault histories. FirePics™ and event histories can be retrieved from the controller or control panel.

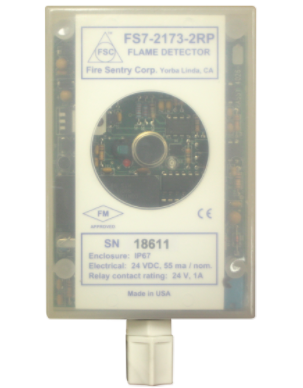

The FS7-2173-2RP unitized model’s microprocessor, with digital signal processing algorithms, continuously monitors the circuitry, sensor’s built-in self-test and verifies proper operation. FS7-2173-2RP with discrete relay outputs is designed to operate as a stand-alone detector and interface with any approved fire alarm panel. The detector requires an external 24 VDC power source and is supplied with a standard 20 ft. pigtail cable. It can store up to six time and date stamped FirePics™ and 200 events in non-volatile memory. FirePics™ and event histories can be retrieved using a FS7 Interface Kit and the Windows-based PC software.

Additional Features and Benefits

Multi-Spectral digital electro-optical radiant energy infrared fire detector
Unique two-stage fire detection response
Immune to false alarm sources
NOT affected by absorbing smoke, gasses or chemical vapors
NOT sensitive to background radiant energy from electric heaters and ovens
Detects hydrocarbon and non-hydrocarbon fires
Rugged leak-proof, heat-sealed, acid-resistant, injection-molded polypropylene housing
Wide 120° field-of-view
Digital communication with RS-485 interface
FirePic™; time and date-stamped digital fire signatures
Built-in detector automatic self test
Unitzed model design for stand-alone operation

Fire Sentry FS7 specifications

Electro-Optical Fire and Flame Detector

General Specifications
Field of View 120° horizontal and vertical
Response Time Alert: 4” dia. Polypropylene pool fire (3kW) within 5 seconds
Alarm: 8” dia. dia. Polypropylene pool fire (13kW) within 5 seconds
Spectral Sensitivity Visible: 400 – 900 nanometers
Near Band IR: 0.7 – 1.1 microns
Wide Band IR: 0.7 – 3.5 microns
Operating Voltage 24 VDC nominal (18-28 VDC) - Regulated
Power Consumption Operating: 55 mA @ 24 VDC nominal
Alarm: 80 mA @ 24 VDC nominal
Output Relays Alert: SPST, N.O., De-Energized
Fire Alarm: SPDT (NO / NC) – De-Energized/Energized, Latching/Non-Latching
Fault: SPST (NO) – Normally Energized, Latching/Non-Latching
Contacts rating: 1 amp @ 24 VDC
Communication RS-485, FireBus II
Visual Indication Red LED
Temperature Range Operating: 32 to +158ºF (0 to 70ºC)
Humidity Range 10 to 90% relative humidity, non-condensing
Enclosure Materials Dust tight, watertight, heat sealed, injection-molded polypropylene
Enclosure Type IP67
Certifications FM 3260, FM 3600, FM 3611
CSFM Listed (California State Fire Marshall)
Shipping Weight 3 lbs.
Mounting Chassis mount slide bracket
Warranty Two years from date of shipping
