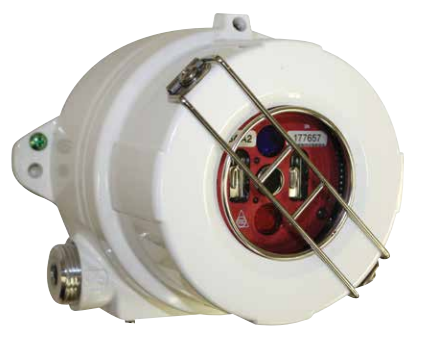

SS2-AM Series UV/IR Ultra-High Speed Digital Fire and Flame Detector

SS2 Flame Detector
SSX Flame Detectors

These multi-spectrum flame detectors sense radiant energy in the ultraviolet (UV), visible and WideBand InfraredTM (IR) spectrum.
Features & Benefits
Detects hydrocarbon and non-hydrocarbon based fires
Wide field-of-view or solar blind

Explosion-proof housing

Product Overview

The SS2-AM and SS2-AML are the ultra-high speed digital Multi-Spectrum optical models of the SS2 UV/IR Flame Detectors. These detectors feature ultra-high speed responses to explosive fires and are typically used in munitions production, explosives production and special applications.

The field of view for the SS2 Flame Detector is the widest in the industry with a 120° cone of vision. This means each detector can cover more hazard area. Greater sensitivity also increases the volume covered by each detector, up to four times more than some other detectors.

Using sophisticated microprocessor signal processing algorithms with complete spectrum information, virtual immunity to false alarms from arc welding, corona discharge and other common UV sources is achieved.

Additional Features and Benefits:
SS2-A and SS2-AN:
• Multi-Spectrum senses ultraviolet, visible and WideBand IR™
• Detects hydrocarbon and non-hydrocarbon based fires
• Wide field-of-view and solar blind
• Greatest sensitivity with false alarm immunity
• Microprocessor abased algorithms: FirePic™ and Tri-Mode Plot™
• Wide temperature range of operation
• Explosion-proof housing
• Proven in worldwide applications
• FS2000™ System compatible or standalone operation
• Compatible with approved fire alarm panels

SS2-AM and SS2-AML:
• Multi-Spectrum senses ultraviolet, visible and WideBand IR™
• Detects hydrocarbon and non-hydrocarbon based fires
• Wide field-of-view and solar blind
• Greatest sensitivity with false alarm immunity
• Microprocessor abased algorithms: FirePic™ and Tri-Mode Plot™
• Wide temperature range of operation
• Explosion-proof housing
• FS2000™ System compatible or standalone operation
• Ultra-high speed response to explosive fires.

Fire Sentry
SS2-A & SS2-AN specification
Multi-Spectrum Digital Electro-Optical
Fire and Flame Detector
General Specifications
Sensitivity 60 ft. to a 1 sq. ft. n-heptane fire
Response Time 2-5 seconds to 1 sq. ft. of n-heptane fire at 60 ft.
Field-of-View 120 degrees cone of vision (60 degrees from on axis).
Spectral Sensitivity Ultraviolet: 185 to 260 nanometers
Wide Band Infrared: 0.7 to 3.5 micrometers
 Visible: 400 to 700 nanometers
Input Power 24 Vdc nominal (20.5 to 34 Vdc)
Power Consumption 56 mA normal operation
 68 mA alarm condition
Output Relays Fire Alarm Relay:
NO & NC contacts
 Latching / Non-Latching, factory set
Normally de-energized
Fault Relay:
NO & NC contacts
Normally energized
Relay contact ratings: 0.5A at 120 Vac, 1.0A at 24 Vdc
Operating Temperature -40° to 185°F (-40° to 85°C)
Humidity Range 0 to 90% RH, non-condensing
Vibration MIL.STD.810C
Weight 3.8 pounds - Aluminum
 7.6 pounds - 316 Stainless Steel
Housing Copper-free aluminum (less than 0.4%) powder coated NEMA4, NEMA4X-IP66, tamper resistant with integral dual 3/4” NPT conduit openings
 316 Stainless steel housing available
Electrical Certifications Explosion-proof
 Class I, Div. 1 & 2, Groups A, B, C and D
 Class II, Div. 1 & 2, Groups E, F and G
 Class III
Mounting Swivel bracket assembly (SM4-optional); 316 Stainless Steel
Warranty Two years from factory shipping date

Part
Number
Model
Number Material
Background
Color
Text
Color mA T4 T5 T6
LB-6093-
049
SS2 0.020' Al
1100-Hl4
Black White 75 -40°C to
+85°C
-40°C to
+75°C
-40°C to
+60°C
LB-6093-
050
SS2 0.020' 316
Stainless Steel
Polished Black 75 -40°C to
+85°C
-40°C to
+75°C
-40°C to
+60°C
LB-6093-
051
SS2 0.020' Al
1100-H14
Black White 75 -40°C to
+85°C
-40°C to
+75°C
-40°C to
+60°C
LB-6093-
052
SS2 0.020' 316
Stainless Steel
Polished Black 75 -40°C to
+85°C
-40°C to
+75°C
-40°C to
+60°C

Select Your SS2-AM Series (UV/IR) Ultra-High Speed Digital Fire And Flame Detector:

SS2‐AM - Copper-Free Aluminum Housing UV/IR/VIS High-Speed Electro-Optical Flame Detector, Non-Latching Alarm Relay, ALARM & FAULT Relays, Class I, Division 1, Groups B, C, & D, FM, CSFM, & CFM Approved, 3/4 NPT

SS2‐AML - Copper-Free Aluminum Housing UV/IR/VIS High-Speed Electro-Optical Flame Detector, Latching Alarm Relay, ALARM & FAULT Relays, Class I, Division 1, Groups B, C, & D, FM, CSFM, & CFM Approved, 3/4 NPT
