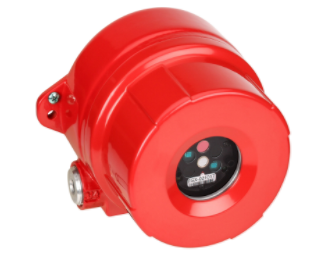

FS24X Flame Detector

FSX Flame Detectors

Sophisticated software algorithms and dual microprocessors ensure that the FS24X has the highest fire detection performance combined with optimal false alarm rejection.
Features & Benefits
Detects hydrocarbon and non-hydrocarbon fuel fires in all environmental conditions
User selection outputs
Optimal false alarm rejection
Quick Specs
Sensitivity: Very high, high, medium and low - switch selectable
Operating voltage: 24 VDC nominal (18-32 VDC) - regulated

Humidity range: 5 to 98% relative humidity, non-condensing

Product Overview

The FS24X is the latest generation high technology Multi-Spectrum Triple IR (IR/IR/IR/Visible) Flame Detector, which is part of our FSX family of advanced technology Electro-Optical fire detectors. Using our patented* WideBand IR™, WideBand 4.3 micron IR™, and Visible detection technology, the FS24X is a quantum leap in flame detection. Sophisticated software algorithms and dual microprocessors ensure that the FS24X has the highest fire detection performance combined with optimal false alarm rejection.

The WideBand IR™ Infrared technology using high-speed solid-state Quantum sensors allows detection of all types of fires, hydrocarbon and non-hydrocarbon, in all weather conditions. If the detector’s signal is blocked by ordinary window glass, the patented WideBand IR sensors will still alarm to the fire but at a reduced sensitivity and slower response time.

Dual microprocessors provide a high level of fail-safe operation combined with fast and reliable performance. The Master Microprocessor performs high-speed digital sampling and signal-processing calculations; while the slave microprocessor handles various sensor data, performs communications, self-diagnostics and provides interface versatility; and additional memory for storing Event Log and FirePic™ data.

The FSX family of detectors feature our patented* FirePic data storage and information retrieval facility. FirePic™ records pre-fire data, which can be recovered from the Detector’s non-volatile flash memory for post fire analysis and postulation of the fire cause. Additionally, unique Real-Time Graphing (RTG™) allows viewing of the data that the Detector actually sees. A combination of outputs makes the FS24X a truly versatile detector for today’s demanding industrial requirements.

The FS24X Flame Detector has a detection range greater than 200 feet (Very High Sensitivity setting) for the detection of a one square-foot Heptane reference fire and has a cone of vision far greater in volumetric coverage than any other Multi-Spectrum IR Detector. This means fewer detectors can be used as compared to other manufacturers’ detectors.

Additional Features and Benefits:
Features

Patented* WideBand IR™ Technology
Patented* Electronic Frequency Analysis™
Visible Sensor for optimum false alarm rejection
Selectable detection sensitivities
Field-of-View: 110° full 100% cone-of-vision (90° full 100% cone-of-vision model also available)
Dual microprocessors for reliable performance
Real-time clock for accurate time dating of events
FirePic™ — pre-fire event data storage
Event log with date and time stamp
RS-485 ModBus communication
Non-Isolated 4-20 mA Analog output (sink or source)
Alarm, Fault and Fire Verification relays
Automatic optical path and electronic self-test
Widest operating temperature range
Patented* Electronics Module for components protection with easy plug-in terminations and field installation
Two ¾” NPT OR 25mm conduit entries
Low power consumption
High RFI and EMI immunity
FM, ATEX, CE mark approvals
Meets SIL 2 requirements
 Benefits
Detects hydrocarbon and non-hydrocarbon fuel fires in all environmental conditions
User selectable outputs
Optimal false alarm rejection for all environmental conditions
Minimal maintenance for trouble-free operation
PC software and Interface Module (FSIM) for fault diagnostics, real-time graphics (RTGs), and downloading of FirePics™ and event log
Suitable for a wide variety of applications
Easy electronics module replacement
Test lamps for manual testing.

Fire Sentry FS24X SPECIFICATIONS
Multi-Spectrum QuadBand™ Triple IR
Flame Detector
General Specifications
Field of View 90° Cone of vision, ± 45° from on axis OR 110° Cone of vision, ± 55° from on axis
Sensitivity Very High (200 ft.), High (150 ft.), Medium (100 ft.) and Low (50 ft.) – Switch Selectable
Response Time 3-5 Seconds to 1 sq. ft. n-Heptane fire at 100 ft.
3-10 Seconds to 1 sq. ft. n-Heptane fire at 200 ft.
Spectral Sensitivity Visible: 400 – 700 nanometers
Near Band IR: 0.7 – 1.1 microns
Wide Band IR: 1.1 – 3 microns
Wide Band IR: 3.0 – 5.0 microns
Operating Voltage 24 VDC nominal (18-32 VDC) - Regulated
Power Consumption Operating: 56 mA @ 24 VDC nominal
Alarm: 106 mA @ 24 VDC nominal
Heater: 155 mA – additional
Note: Heater will turn on at 0ºF (-17ºC)
Output Relays Fire Alarm: SPDT (NO / NC) – De-energised/energized, Latching/Non-Latching
Fault: SPST (NO) – De-energised/energized, Latching/Non-Latching
Auxiliary: SPDT (NO / NC) – De-energised/energized, Latching/Non-Latching
Contacts rating: 1 amp @ 24 VDC
Analog Output 0 - 20 mA stepped - Source or Sink User Selectable
Loop resistance 50 - 400 Ohms
Communication One of the following – User Selectable:
• RS-485, ModBus Protocol
• RS-485, FireBus II
• HART (not available with EN54-10 models), Optional plug-in module
Visual Indications Green LED: Power
Red LED: Alarm
Yellow LED: Fault
Temperature Range Operating: 110° Field of View FS24X: -40 to +185ºF (-40 to +85ºC); 90° Field of View FS24X: -76 to +185°F (-60 to +85°C)
Storage: -67 to +230ºF (-55 to +110ºC)
Humidity Range 5 to 98% relative humidity, non-condensing
Vibration Meets or exceeds MilSpec 810C Method 514.2, Curve AW12
Wiring 14 AWG (2.5mm2) to 22 AWG (0.326mm2); Shielded Cable Recommended
Conduit Entries Standard: Two ¾” NPT or two M25
Enclosure Materials Copper-Free Powder Coated Aluminum or 316 Stainless Steel
Enclosure Type NEMA 4 & 4X, IP66
Certifications FM: Class I, Div. 1, Groups A, B, C, & D; Class II/III, Div. 1, Groups E, F, & G
ATEX: II 2 G Ex db IIC T (see description; dependent on T code), II 2 D Ex tb IIIC T135°C
110° Field of View FS24X: T4 (Ta: -40 to +110°C), T5 (Ta: -40 to +75°C), T6 (Ta: -60 to +60°C)
90° Field of View FS24X: T4 (Ta: -60 to +110°C), T5 (Ta: -60 to +75°C), T6 (Ta: -60 to +60°C)
CE: Complies with EN6100-6-4 & EN50130-4
SIL Rating: FMEDA is available upon request
IECEx, Inmetro, GOST
Shipping Weight Aluminum: 3.6 lbs (1.6 kg)
Stainless Steel: 7 lbs (3.2 kg)
Mounting Swivel Bracket Assembly - Optional
Warranty Three years from date of shipping
