Unipoint Controller
Gas Detection Controllers

DIN rail mounted controller allows you to incorporate flammable, toxic or oxygen gas detection into control systems.
Features & Benefits
User friendly with ultra-clear backlit display
TS35 (‘top hat’) DIN rail mounting
Compatible with a wide range of gas detectors

Quick Specs

Product Overview

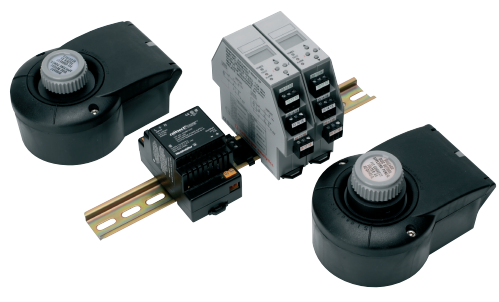

Unipoint can be easily installed into any plastic or metal enclosure for use indoor or outdoors and even in potentially explosive atmospheres. With the addition of one of Honeywell Analytics' range of flammable, toxic or Oxygen detectors, systems may be configured to monitor gases in a wide range of applications from car parks and boiler houses to analyser shelters or crane cabs in offshore facilities.

Two versions of Unipoint are available; one for mV bridge, catalytic bead type, flammable gas detector and the other for any 2 or 3 wire 4-20mA type gas detector. Each Unipoint is easily installed onto the DIN rail via a special socket (provided) that also interconnects power to adjacent units. With removable terminal connectors, individual Unipoint controllers can be easily changed without disturbing other devices.

By clipping together multiple Unipoints small to medium sized monitoring solutions can be realised. Each unit includes built-in audio/visual alarms, three programmable alarm relays and a fault relay. Gas concentration and system status is displayed on the backlit LCD and each controller is fully user programmable via an intuitive, push button operated menu system. Configuration menus can be password protected to prevent unauthorised access. In addition remote inputs allow accept, reset and inhibit of alarms without the need to open the enclosure that the Unipoint is mounted in.

Additional Features and Benefits:

Typical Applications

Small and medium integrated systems
Custom control cabinets and panels
Unmanned equipment rooms
Boiler houses
HVAC systems
Analyzer houses
Car parks
Crane cabs
Laboratories
User Friendly

Ultra-clear backlit display
System status codes
Built-in audiovisual alarms
Intuitive menu system
Simple pushbutton operation
Remote accept, reset and inhibit inputs
Easy to Install

TS35 (‘top hat’) DIN rail mounting
Removable terminal connectors
Easy access to all terminals
Additional units clip together
Comprehensive Operation

3 wire mV bridge, 2 and 3 wire 4-20mA inputs
DC operation
3 x alarm relays
1 x system fault relay
Field inhibit input (mA versions)
Flexible Operation

Fully user programmable scale, units and calibration
Relays configurable as energized, de-energized, latching or non-latching, alarm relay on/off delay
Compatible with a wide range of gas detectors

Ordering Information
Controllers
Unipoint Controller (mV input version) 2306B2000
Unipoint Controller (mA input version) 2306B1000
Spares
Unipoint Terminal Block Plug (x2) 2306B3010
Unipoint DIN rail socket kit 2306B3020
Unipoint power connector kit 2306B3030
Required controller type reference:
Detector Gas Type No. Wires Controller Required

Signalpoint Flammable 3 mV
 Toxic 2 mA
Sensepoint Flammable 3 mV
 Toxic 2 mA
Sensepoint Plus Flammable 3 mA
 Toxic 3 mA
Sensepoint Pro Flammable 3 mA
 Toxic 3 mA
Standard Supply Each Unipoint controller is supplied complete with DIN rail socket, power connector,
gas type stickers and instruction manual.
Shipping Details Shipping carton dimensions: H197mm (7.8") x W275mm (10.8") x D36mm (1.4")
Approximate weight: 420g (14.8oz)
