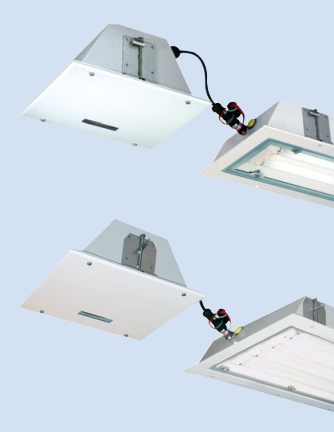

Emergency light fitting designed specifically for use in clean room areas. Available in painted sheet steel or stainless steel.

Features
• Standard dual channel ballast with EOL monitoring
• Flush installation, specially for clean rooms
• Available in painted sheet steel or stainless steel
• Safety interlocking due to integral automatic disconnector
• Automatic function test and partial duty cycle test
• LED display for indication of charging, operation or fault status
• Easy replacement of battery, even in Ex-area
• High degree of protection IP66
• Connection to CEAG emergency light monitoring systems
possible (V-CG-S)
• Suitable for ceiling B15 fire resistance

Ordering details

eLLB 20 ... V-CG-S

Type Content Terminals Throughwiring


single-ended
Throughwiring


twin-ended
Cable gland/
thread
Threaded
plug
Blanking
plug
Order No.
eLLB 20018/18 V-CG-S
eLLB 20018/18
V-CG-S (2 x 18 W)
2/6-2K
painted
2 x 6 – x 2 x M25,
plastic
2 x M25 1 1 2190 218 703
eLLB 20018/18
V-CG-S (2 x 18 W)
2/6-2M 1)
painted
2 x 6 – x 4 x M20,
metal thread
2 x M20 1 2190 218 713
eLLB 20018/18
V-CG-S (2 x 18 W)
2/6-2M 1)
st. steel
2 x 6 – x 4 x M20,
metal thread
2 x M20 1 2190 218 723
eLLB 20018/18
V-CG-S (2 x 18 W)
2/6-2K
st. steel
2 x 6 – x 2 x M25,
plastic
2 x M25 1 1 2190 218 733
eLLB 20036/36 V-CG-S
eLLB 20036/36
V-CG-S (2 x 36 W)
2/6-2K
painted
2 x 6 – x 2 x M25,
plastic
2 x M25 1 1 2190 236 703
eLLB 20036/36
V-CG-S (2 x 36 W)
2/6-2M 1)
painted
2 x 6 – x 4 x M20,
metal thread
2 x M20 1 2190 236 713
eLLB 20036/36
V-CG-S (2 x 36 W)
2/6-2M 1)
st. steel
2 x 6 – x 4 x M20,
metal thread
2 x M20 1 2190 236 723
eLLB 20036/36
V-CG-S (2 x 36 W)
2/6-2K -
st. steel
2 x 6 – x 2 x M25,
plastic
2 x M25 1 1 2190 236 733
eLLB 20058/58 V-CG-S
eLLB 20058/58
V-CG-S (2 x 58 W)
2/6-2K
painted
2 x 6 – x 2 x M25,
plastic
2 x M25 1 1 2190 258 703
eLLB 20058/58
V-CG-S (2 x 58 W)
2/6-2M 1)
painted
2 x 6 – x 4 x M20,
metal thread
2 x M20 1 2190 258 713
eLLB 20058/58
V-CG-S (2 x 58 W)
2/6-2M 1)
st. steel
2 x 6 – x 4 x M20,
metal thread
2 x M20 1 2190 258 723
eLLB 20058/58
V-CG-S (2 x 58 W)
2/6-2K
st. steel
2 x 6 – x 2 x M25,
plastic
2 x M25 1 1 2190 258 733
eLLB 20418 V-CG-S
eLLB 20418 V-CG-S
(4 x 18 W)
2/6-2K
painted
2 x 6 – x 2 x M25,
plastic
2 x M25 1 1 2190 418 703
eLLB 20418 V-CG-S
(4 x 18 W)
2/6-2M 1)
painted
2 x 6 – x 4 x M20,
metal thread
2 x M20 1 2190 418 713
eLLB 20418 V-CG-S
(4 x 18 W)
2/6-2M 1)
st. steel
2 x 6 – x 4 x M20,
metal thread
2 x M20 1 2190 418 723
eLLB 20418 V-CG-S
(4 x 18 W)
2/6-2K
st. steel
2 x 6 – x 2 x M25,
plastic
2 x M25 1 1 2190 418 733
eLLB 20436 V-CG-S
eLLB 20436 V-CG-S
(4 x 36 W)
2/6-2K
painted
2 x 6 – x 2 x M25,
plastic
2 x M25 1 1 2190 436 703
eLLB 20436 V-CG-S
(4 x 36 W)
2/6-2M 1)
painted
2 x 6 – x 4 x M20,
metal thread
2 x M20 1 2190 436 713
eLLB 20436 V-CG-S
(4 x 36 W)
2/6-2M 1)
st. steel
2 x 6 – x 4 x M20,
metal thread
2 x M20 1 2190 436 723
eLLB 20436 V-CG-S
(4 x 36 W)
2/6-2K
st. steel
2 x 6 – x 2 x M25,
plastic
2 x M25 1 1 2190 436 733
1) with metal thread, without cable gland
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
eLLB 20018/18 NIB
eLLB 20018/18 NIB
(2 x 18 W)
2/6-2K
painted
2 x 6 – x 2 x M25,
plastic
2 x M25 1 1 2190 218 002
eLLB 20018/18 NIB
(2 x 18 W)
2/6-2K -
st. steel
2 x 6 – x 2 x M25,
plastic
2 x M25 1 1 2190 218 012
eLLB 20018/18 NIB
(2 x 18 W)
2/6-2M 1)
painted
2 x 6 – x 4 x M20,
metal thread
2 x M20 1 2190 218 102
eLLB 20018/18 NIB
(2 x 18 W)
2/6-2M 1)
st. steel
2 x 6 – x 4 x M20,
metal thread
2 x M20 1 2190 218 112
eLLB 20036/36 NIB
eLLB 20036/36 NIB
(2 x 36 W)
2/6-2K
painted
2 x 6 – x 2 x M25,
plastic
2 x M25 1 1 2190 236 002
eLLB 20036/36 NIB
(2 x 36 W)
2/6-2K -
st. steel
2 x 6 – x 2 x M25,
plastic
2 x M25 1 1 2190 236 012
eLLB 20036/36 NIB
(2 x 36 W)
2/6-2M 1)
painted
2 x 6 – x 4 x M20,
metal thread
2 x M20 1 2190 236 102
eLLB 20036/36 NIB
(2 x 36 W)
2/6-2M 1)
st. steel
2 x 6 – x 4 x M20,
metal thread
2 x M20 1 2190 236 112
eLLB 20418 NIB
eLLB 20418 NIB
(4 x 18 W)
2/6-2K
painted
2 x 6 – x 2 x M25,
plastic
2 x M25 1 1 2190 418 002
eLLB 20418 NIB
(4 x 18 W)
2/6-2K
st. steel
2 x 6 – x 2 x M25,
plastic
2 x M25 1 1 2190 418 012
eLLB 20418 NIB
(4 x 18 W)
2/6-2M 1)
painted
2 x 6 – x 4 x M20,
metal thread
2 x M20 1 2190 418 102
eLLB 20418 NIB
(4 x 18 W)
2/6-2M 1)
st. steel
2 x 6 – x 4 x M20,
metal thread
2 x M20 1 2190 418 112
eLLB 20436 NIB
eLLB 20436 NIB
(4 x 36 W)
2/6-2K
painted
2 x 6 – x 2 x M25,
plastic
2 x M25 1 1 2190 436 002
eLLB 20436 NIB
(4 x 36 W)
2/6-2K
st. steel
2 x 6 – x 2 x M25,
plastic
2 x M25 1 1 2190 436 012
eLLB 20436 NIB
 (4 x 36 W)
2/6-2M 1)
painted
2 x 6 – x 4 x M20,
metal thread
2 x M20 1 2190 436 102
eLLB 20436 NIB
(4 x 36 W)
2/6-2M 1)
st. steel
2 x 6 – x 4 x M20,
metal thread
2 x M20 1 2190 436 112
1) with metal thread, without cable gland
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
