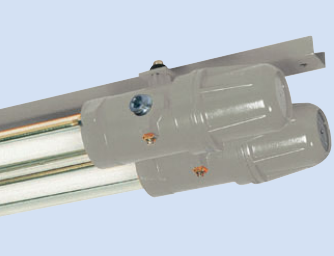

Ex-d Light Fitting EVF

Series of luminaires with robust housings for use both indoors and outdoors. High mechanical and thermal stability.

Features
• Robust Ex-d housing
• Temperature class T6
• Electronic or electromagnetic ballast
• Easy opening due to screw cover on end
• Large terminal compartment
• High degree of protection IP67

Ordering details
EVF…E / EVF…C
Type Terminals Throughwiring


single-ended
Entry /
thread
Threaded plug Order No.
EVF 120 E (1 x 18 W) 1 x 3 x 2 x 3/4'' NPT, metal thread 1 x 3/4'' Ex-d NOR 000 005 070 300
EVF 140 E (1 x 36 W) 1 x 3 x 2 x 3/4'' NPT, metal thread 1 x 3/4'' Ex-d NOR 000 005 070 308
EVF 165 E (1 x 58 W) 1 x 3 x 2 x 3/4'' NPT, metal thread 1 x 3/4'' Ex-d NOR 000 005 070 316
EVF 240 E (2 x 36 W) 1 x 3 x 2 x 3/4'' NPT, metal thread 1 x 3/4'' Ex-d NOR 000 005 070 328
EVF 265 E (2 x 58 W) 1 x 3 x 2 x 3/4'' NPT, metal thread 1 x 3/4'' Ex-d NOR 000 005 070 333
EVF 120 C (1 x 18/20 W) 1 x 3 x 2 x 3/4'' NPT, metal thread 1 x 3/4'' Ex-d NOR 000 005 070 064
EVF 140 C (1 x 36/40 W) 1 x 3 x 2 x 3/4'' NPT, metal thread 1 x 3/4'' Ex-d NOR 000 005 070 030
EVF 165 C (1 x 58/65 W) 1 x 3 x 2 x 3/4'' NPT, metal thread 1 x 3/4'' Ex-d NOR 000 005 070 402
EVF 240 C (2 x 36/40 W) 1 x 3 x 2 x 3/4'' NPT, metal thread 1 x 3/4'' Ex-d NOR 000 005 070 022
EVF 265 C (2 x 58/65 W) 1 x 3 x 2 x 3/4'' NPT, metal thread 1 x 3/4'' Ex-d NOR 000 005 070 428
Scope of delivery without lamp and fixing accessories
Metal cable glands see catalogue part 2: 2.3.12 ff
Accessories
Type Content Application Order No.
Wire guard REVF 65 steel, white epoxid coated 1) for EVF 165/265 NOR 000 000 507 319
Wire guard REVF 20 steel, white epoxid coated for EVF 120 NOR 000 000 507 385
Wire guard REVF 40 steel, white epoxid coated 1) for EVF 140/240 NOR 000 000 507 393
1) EVF 240 and EVF 265 2 pcs. per luminaire
