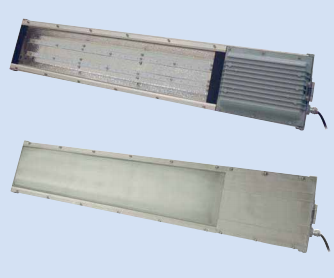

Linear light fitting with high power LED for Zone 2, 21 and 22. Emergency version available.

Features
• Linear light fitting for normal lighting and with self-contained battery
for emergency lighting (type EM)
• Immediate start, instant full illumination
• No lifetime reduction due to switching cycles
• High efficient and energy saving up to 42 %
• Superb safety and reliability, robust construction
• Protective cover in clear or opaque impact resistant glass
• Wide temperature range and a brilliant optical performance for
a wide application range
• Mercury-free and environment-friendly
• High degree of protection IP66
Ordering details
LL48 Ex-Linear LED
Type Power
consumption
Thread Protective
cover
Emergency
duration
Luminous flux in
emergency mode
Order No.
LL48 5L... (5000 lm) emergency lighting with opaque cover
LL48-5L-757/-F-1M-EM1 60 W 1 x M20 opaque 3 h 35 % CCL 1201 263 A
LL48-5L-757/-F-1M-EM2 60 W 1 x M20 opaque 2 h 50 % CCL 1201 264 A
LL48-5L-757/-F-1M-EM1-S886 60 W 2 x M20 opaque 3 h 35 % CCL 1201 265 A
LL48-5L-757/-F-1M-EM2-S886 60 W 2 x M20 opaque 2 h 50 % CCL 1201 266 A
LL48 6L... (6000 lm) emergency lighting with clear cover
LL48-6L-757/-C-1M-EM1 60 W 1 x M20 clear 3 h 35 % CCL 1201 267 A
LL48-6L-757/-C-1M-EM2 60 W 1 x M20 clear 2 h 50 % CCL 1201 268 A
LL48-6L-757/-C-1M-EM1-S886 60 W 2 x M20 clear 3 h 35 % CCL 1201 269 A
LL48-6L-757/-C-1M-EM2-S886 60 W 2 x M20 clear 2 h 50 % CCL 1201 270 A
LL48 7L... (7000 lm) with opaque cover
LL48-7L-757/-F-1M 75 W 1 x M20 opaque - CCL 1201 279 A
LL48-7L-757/-F-1M-S886 75 W 2 x M20 opaque - CCL 1201 280 A
LL48 8L... (8000 lm) with clear cover
LL48-8L-757/-C-1M 75 W 1 x M20 clear - CCL 1201 281 A
LL48-8L-757/-C-1M-S886 75 W 2 x M20 clear - CCL 1201 282 A
Scope of delivery without fixing accessories
Mounting accessories
Type Order No.
Ceiling/wall mounting brackets and pipe clamps
Ceiling mounting brackets D 92 with screws and polyamide washer, stainless steel, 2 pcs 2 2480 092 000
Wall mounting brackets with 30° angle, hot-dip galvanized, 2 pcs. 2 2480 550 013
Pipe clamps R12 (1 1/4 “) Ø 38 - 42 mm with screws and polyamide washer, hot-dip galvanized 2 2480 462 000
Pipe clamps R12 (1 1/2 “) Ø 47 - 51 mm with screws and polyamide washer, hot-dip galvanized 2 2480 472 000
