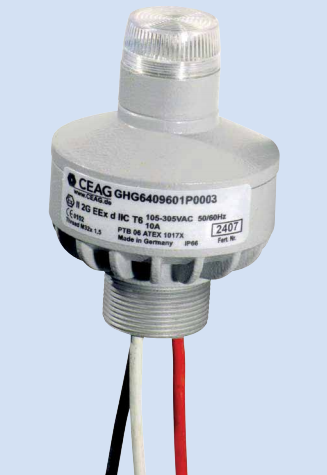

Screw-in photocell for the control of lighting. Approved for mounting in Ex-d and Ex-e enclosures.

Features
• Switching capacity up to 1800 VA
• High degree of protection IP66
• Easy to install
Ordering details / Technical data / Dimension drawing
Twilight switch SG-Ex RFE

Type Content Order No.
SG-Ex RFE
Twilight switch SG-Ex RFE Sensitivity 4 - 15 lux GHG 640 9601 P0003

Technical data
Twilight switch SG-Ex RFE
Marking accd. to 2014/34/EU D II 2 G Ex d IIC T6
EC-Type Examination Certificate PTB 06 ATEX 1017 X
Permissible ambient temperature -40 °C up to +70 °C
Rated voltage 105 V to 305 V AC
Rated current max. 10 A
Frequency 50 - 60 Hz
Power consumption ≤ 1 W
Rated switching capacity 1800 VA
Standard cable length approx. 0.5 m, 3 x 1.5 mm2
Protection class I
Degree of protection accd. to EN 60529 IP66
Weight 0.25 kg
Type of mounting screw in thread M32 x 1.5
Enclosure material aluminium
Enclosure colour grey
