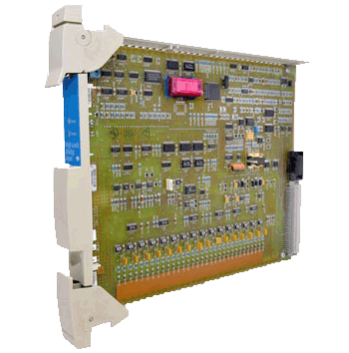

51304754-150 | Honeywell | MC-PAIH03 High Level Analog Input Processor-16 Inputs

DCS System Honeywell 51304754-150

Estimated Lead Time: 4 Weeks


Manufacturer: Honeywell


MC-PAIH03


Model Number : MC-PAIH03


Non CE Compliant Part Number : N/A


CE Compliant Part Number : 51304754-150


Description : High Level Analog Input (HLAI)


Conformally Coated Assembly Model Numbers


FTA Models: MU-TAIH02, TAIH12, TAIH52, TAIH03, TAIH13, TAIH23, TAIH53, TAIH22, TAIH62


Input Type: Voltage, current (2-wire or self-powered transmitters)


Input Channels : 16 differential input channels


Common Mode Rejection Ratio, dc to 60 Hz (500 source imbalance): 70 dB


Common Mode Voltage, dc to 60 Hz(1): -6 to +5 V peak


A/D Converter Resolution: 16 bits (14 bits used)


Input Range 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 )


Normal Mode Rejection Ratio, at 60 Hz: 32 dB


Normal Mode Filter Response : Single-pole RC, -3 dB @ 1 Hz


Maximum Normal Mode Input(differential inputs, no damage): ± 30 Volts


Crosstalk, dc to 60 Hz(channel-to-channel): 60 dB


Input Impedance (Voltage Inputs): > 10 M powered


Maximum Input Voltage(any input referenced to common, no damage): ± 30 Volts


Input Scan Rate: 4 samples per second per channel.All channels sampled within a 250 ms window


Hardware Accuracy (@ CMV = 0 V): ± 0.075% full-scale (23.5°± 2°C), ± 0.15% full-scale (0 to 50°C)


Surge withstand capability (Common mode) ANSI/IEEE C37.90.1-1978


Shipping Weight : 1.5 Kg
