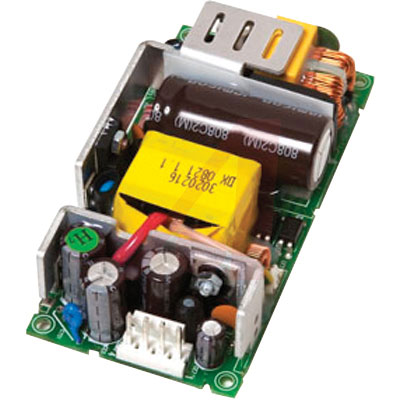

SL Power ( Ault / Condor ) MINT1065A1575C01

Power Supply; AC-DC; 15V; 4.33A; 100-240V In; Open Frame; Medical; MINT1065 Series
Mfr. Part#: MINT1065A1575C01
Allied Stock#: 70151934

Specifications
Configuration : Open Frame
Current, Output : 4.33 A
Input Voltage : 100 VAC | 110/115/120 VAC | 110 VAC | 115 VAC | 120 VAC | 127 VAC | 190 VAC | 200 VAC | 220/230/240 VAC | 220 VAC | 230 VAC | 240 VAC
Mounting Type : Panel Mount
Number of Outputs : 1 Output
Operation : Switching
Power, Output : 65 W
Primary Type : AC-DC
Product Header : Switching Power Supply
Series : MINT1065 Series
Special Features : 3 Year Warranty
Type : Medical
Voltage, Input Range : 100-240 VAC
Voltage, Output : 15 VDC

Overview
SL Power's MINT1065 internal power supplies bring a high performance supply at a popular power level especially for medical applications. The MINT1065 single-output family is the latest addition to the company's line of Condor-branded power supplies. Condor MINT1065 units are open-frame designs measuring only 2 × 4 × 1.02 In. (51 × 102 × 27 mm). They have a typical full-load efficiency of 90 percent and are available in five models ranging from 12 to 48 V. The MINT1065 can be used in a wide range of medical applications, from diagnostic and respiratory care equipment to continuous positive airway pressure (CPAP) devices and monitors of all types.

The MINT1065 series features a universal 100-240 VAC input that provides flexibility for use anywhere in the world. It also includes over voltage, over current and short circuit protection. Optional over-temperature protection is available as well.

SL Power's MINT1065 AC-DC power supplies are immunity compliant to EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8 and EN61000-4-11 standards. The series also carries a wide set of safety approvals include EN/IEC/UL 60601-1 and CSA 22.2 No. 601.1-M90. In addition, the MINT1065 family is RoHS-compliant.
