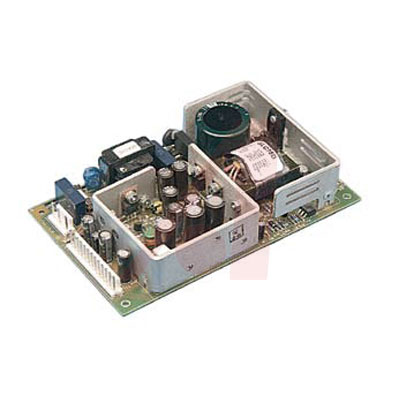

SL Power ( Ault / Condor ) GLC75DG

Power Supply; AC-DC; 5.1V@8A; 12V@2.5A; 24V@2.5A; -12V@1A; 90-264V In; Open Frame; GLC
Mfr. Part#: GLC75DG
Allied Stock#: 70151724

Specifications
Configuration : Open Frame
Current, Output : 8A@5.1V, 2.5A@24V, 1A@-12V, 2.5A@12V
Input Voltage : 100 VAC | 110/115/120 VAC | 110 VAC | 115 VAC | 120 VAC | 127 VAC | 190 VAC | 200 VAC | 220/230/240 VAC | 220 VAC | 230 VAC | 240 VAC
Mounting Type : Panel Mount
Number of Outputs : 4 Output
Operation : Switching
Power, Output : 75 W
Primary Type : AC-DC
Product Header : Switching Power Supply
Series : GLC75 Series
Special Features : 2 Year Warranty
Type : Embedded
Voltage, Input Range : 90-264 VAC
Voltage, Output : 5.1 VDC, 12 VDC, 24 VDC, -12 VDC

Overview
75 W Single Output Power Supplies — GLC75 Series
Single Output — Overall Dimensions: 5.75 × 3.40 × 1.56, Wt: 1.0 Lbs. Meets 1U applications.
Universal Input 90-264 VAC
Two-Year Warranty
Complies with EN61000-3-2 Class A
Conducted EMI Exceeds FCC Class B and CISPR 22 Class B
Commercial Approved to UL 1950, CSA 22.2 No. 234 and IE C950, EN60950
Marked to LVD
