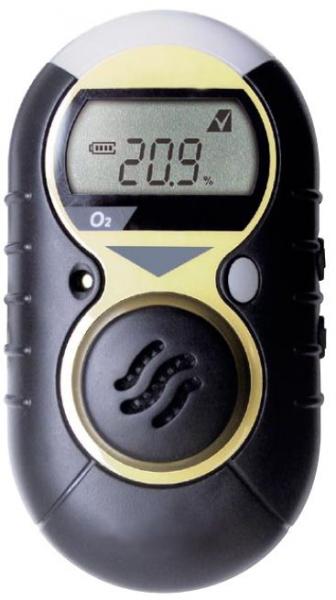

Lumidor Minimax XP
The Minimax XP is a personal detector, UL certified for hazardous area use and is able to monitor a single gas from a range of oxygen and toxic gases. Utilizing cell output decay compensation, in conjunction with patented sensor technology the Minimax XP ensures accuracy and reliability while providing a cost effective instrument.
User flexibility is achieved with built-in menus, and the on/off operation of the instrument provides up to 3 years of battery life under typical use. All Minimax XP instruments provide 2 levels of instantaneous alarm, STEL and TWA alarms, and have audible, visual and vibrating alarms as standard.
All Minimax XP instruments are supplied with a case clip, test adaptor and manual, and an optional interactive product guide CD is available. Designed to meet IP67 water ingress protection.
|
1. Instrument |
Order Number |
|
Oxygen O2 Kit 0-30% |
Minimax-XP-O2 |
|
Carbon Monoxide CO Kit 0-999ppm |
Minimax-XP-CO |
|
Hydrogen Sulphide H2S Kit 0-250ppm |
Minimax-XP-H2S |
|
Chlorine Cl2 Kit 0-50ppm |
Minimax-XP-CL2 |
|
Sulpher Doixide SO2 Kit 0-150ppm |
Minimax-XP-SO2 |
|
Phosphine PH3 Kit 0-2ppm |
Minimax-XP-PH3 |
|
Ammonia NH3 Kit 0-100ppm |
Minimax-XP-NH3 |
|
Ammonia NH3, High range, 0-400ppm |
Minimax-XP-NH3-H |
|
Hydrogen Cyanide HCN Kit 0-100ppm |
Minimax-XP-HCN |
|
2. Accessories & Spares |
Order Number |
|
|
|
|
Test Adaptor |
Minimax-XT-01 |
|
Hand Aspirator |
Minimax-XP-06 |
|
Ball Float |
2302B0846 |
|
1m (3’), 4-part, Sampling Probe |
2302B0847 |
|
Crocodile Clip Kit |
2566K0130 |
|
Replacement CO Sensor |
EGS266 |
|
Replacement NH3 High Range |
EGS410 |
|
Replacement Sensor Filter |
Minimax-XP-07 |
|
Replacement Impulse XP Battery (Energizer Lithium CR2) |
Minimax-XP-Batt |
|
3. Calibration & Test Equipment |
Order Number |
|
H2S (1 litre, 34 bar) 25ppm H2S in air |
2303D0752 |
|
NO2 (1 litre, 34 Bar) 10ppm NO2 in Air |
2302D0755 |
|
Cl2 (1 litre, 34 bar) 5ppm Cl2 in N2 (max. 6 mo shelf life) |
2302D0757 |
|
SO2 (1 litre, 34 bar) 10ppm SO2 in air |
2302D0758 |
|
H2 200ppm H2 (balance N2) 34 L (contact HA for details) |
2566-0226 |
|
25ppm NH3, 34L cylinder |
GFV250 |
|
Flow Regulator 0.3 litres per minute |
235-285-085 |
|
Gas Cylinder Carrying Case |
2302D0765 |
|
Tubing PU 6mm IDx9mm OD 2m Bagged |
402-190-120 |
