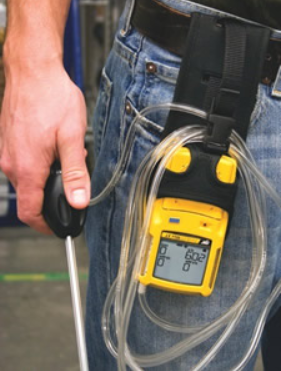

GasAlert Max XT II 4-Gas Detector Features & Specifications

The GasAlert MAX XT II simultaneously monitors and displays up to four potential atmospheric

hazards including oxygen, combustibles/LEL, CO and H2S..

Easy operation with one-button simplicity
Integrated sampling pump with reliable diaphragm technolog designed with SmartSample technology

to prevent moisture from entering pump and save time with reliable pump block detection
Low, High STEL (short-term exposure limit), TWA (time-weighted average), and OL (over limit)

alarms
Built-in rechargeable lithium battery
Visual, audible and vibrating alarms
Equipped with standard datalogging and event logging
Rugged and durable with built-in concussion-proof boot
Multi-language support in English, French, German, Spanish and Portuguese
MicroDock II compatible for easy calibration, test and record storage
Conveniently manage your detector with Fleet Manager II software

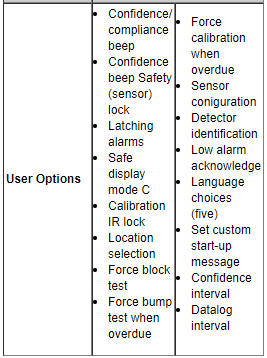

GasAlert MAX XT II Specifications

GasAlert MAX XT II Configurations
Part Number Quattro- Sensors Installed
XT-XWHM-Y-NA Combustible (% LEL), oxygen (O2), hydrogen sulfide (H2S), carbon monoxide (CO)

                - yellow housing
XT-XWH0-Y-NA Combustible (% LEL), oxygen (O2), hydrogen sulfide (H2S) - yellow housing
XT-XW0M-Y-NA Combustible (% LEL), oxygen (O2), carbon monoxide (CO) - yellow housing
XT-X0HM-Y-NA Oxygen (O2), hydrogen sulfide (H2S), carbon monoxide (CO) - yellow housing
XT-XW00-Y-NA Combustible (% LEL), oxygen (O2) - yellow housing
XT-00HM-Y-NA Hydrogen sulfide (H2S), carbon monoxide (CO) - yellow housing
XT-X0H0-Y-NA Oxygen (O2), hydrogen sulfide (H2S) - yellow housing
XT-X00M-Y-NA Oxygen (O2), carbon monoxide (CO) - yellow housing
XT-X000-Y-NA Oxygen (O2) - yellow housing
XT-00H0-Y-NA Hydrogen sulfide (H2S) - yellow housing
XT-000M-Y-NA Carbon monoxide (CO) - yellow housing

Detectors ship with sensors (user specified), stainless-steel alligator-style clip,

rechargeable battery, charging adaptor, calibration hose with quick-connect fitting, sampling

hose with quick-connect fitting, reversible screwdriver, five pump filters, instructions and

quick reference card.

For Black Housing Change the "Y" in the part number to "B"
